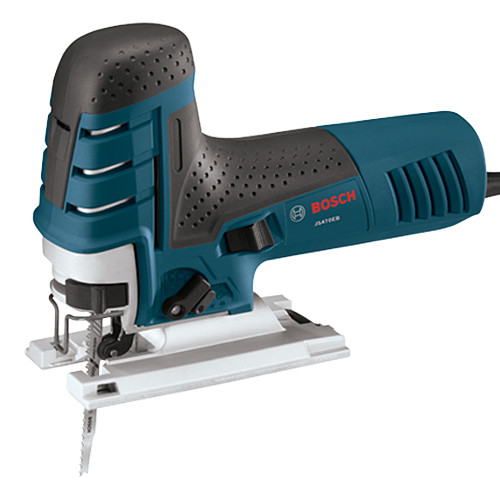

Bosch Jigsaw Barrel Grip JS470EB
    Bosch Jigsaw Barrel Grip JS470EB Image
    Bosch Jigsaw Barrel Grip JS470EB Image
    Bosch Jigsaw Barrel Grip JS470EB Image

Bosch Jigsaw Barrel Grip JS470EB

$159.95
Item #: BO12010


Product Description


The Bosch JS470EB Barrel-Grip Jig Saw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0-amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. It delivers 500 up to 3,100 strokes per minute - with a stroke length of 1 In. It has an ergonomic body with an upfront soft-grip handle for comfort and user control. It was manufactured with an aluminum gearbox. This fully counterbalanced low-vibration mechanism provides a low-vibration plunging design and Constant Response_ circuitry for consistent speed under load. It has a large die-cast aluminum footplate with a no-mar plastic overshoe. The JS470EB's multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). A variable-speed dial sets the operating speed. The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.

Includes

  • (1) Jig Saw Blade
  • (1) Anti-Splinter Insert
  • (1) Plastic Overshoe
  • (1) Bevel Wrench
  • (1) Carrying Case

Benefits
  • Large die-cast aluminum footplate - provides a no-mar plastic overshoe
  • Ergonomic body - features an upfront grip area for maximum control, precision and comfort
  • Soft-grip areas - offers a solid, comfortable grip
  • Powerful 7.0-amp motor - delivers up to 3,100 strokes per minute
  • Variable-speed control - includes a dial to control operating speed
  • Constant Response_ circuitry - for consistent performance under load
  • Multi-directional blade clamp - superior grip of T-shank blades (does not accept U-shank blades)
  • Aluminum gearbox with insulated cover - provides durability
  • Toolless blade-change system - permits fast blade insertion
  • Ejection lever - eliminates the need to touch hot blades
  • Four orbital-action settings - varied blade strokes
  • Internal precision control - precision-machined plunging system and low-vibration design for enhanced accuracy and extremely smooth operation
  • Dust blower with on/off switch - keeps the cut line visible and free of dust
  • Fully counterbalanced low-vibration mechanism - ensures extremely smooth operation

Specifications

Amperage: 7.0
Bevel angle Range: 45°
Cutting capacity soft wood: 5-7/8"
Cutting capacity aluminum: 0.875
Cutting capacity mild steel: 0.375
Dust blower: Yes
Dust collection: Yes
Height: 7"
Hertz: 60
Jig saw blade type: Jig saw T-Shank
Length: 7"
Max. bevel capacity: 45°
Max. bevel cut: 45°
No load SPM: 500-3,100
Rating: 120V
Stroke length: 1.0
Voltage: 120V
Weight: 5.9lb
Width: 2.5"
