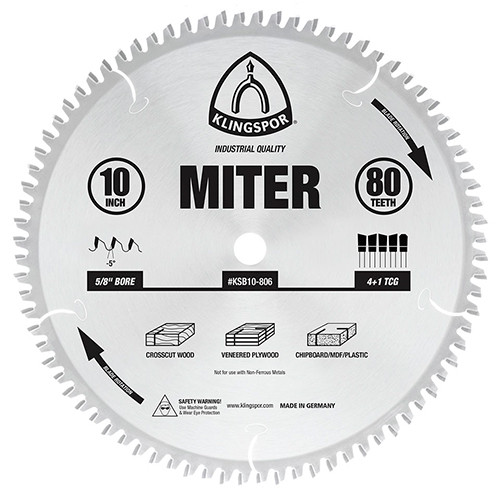

Klingspor HD Slide Miter 10X80 Blade
Klingspor HD Slide Miter 10X80 Blade Image

Klingspor HD Slide Miter 10X80 Blade

$75.95
Item #: KA10806


Product Description


KLINGSPOR Full Kerf Saw Blades

KLINGSPOR's new blade line consists of value-priced, industrial-quality circular saw blades for cabinet shops, professional woodworkers and discerning hobbyists. Manufactured in Germany, these blades are laser cut from virgin steel, flattened, ground, tensioned and tipped with large, European-style carbide tips. These tips are ground for smooth, accurate cutting. Every step of the manufacturing process is computer-controlled and monitored by sophisticated inspection equipment assuring consistently "tight" tolerances and superior quality. KLINGSPOR blades will deliver excellent performance and outstanding value!

The KLINGSPOR Heavy-Duty Single/Double Miter blades were designed especially for glass- smooth compound miters cuts in moldings or picture frame stock for use in a miter box, radial arm, and single/double miter saws. This style blade is the perfect choice for picture frame and millwork shops. Unlike thinner miter blades which have a tendency to flex and warp, throwing off the miter joint. Our Blades are stiffer and flatter, and provide clean burr-free cuts in wood, plywood, MDF, and plastics. Special grind, minimal run-out and tight side clearances all combine to yield perfect "GAP-FREE" miters every time! The negative hook design will prevent the blade from wanting to self-feed, while crosscutting when used on a sliding or radial arm saw.

WARNING: Not recommended for cutting non-ferrous alloys.

Specifications

Diameter: 10"
Teeth: 80
Kerf: 3.0mm / .118"
Plate: 2.5mm / .098"
Hook angle: -5°
Bore: 5/8"
Materials: Soft/Hardwood: Excellent, Crosscut Soft/Hardwood: Excellent, Plywood: Excellent, PVC Trim: Good
4 H-ATB + 1 TGC Grind: Four high alternate top bevel followed by one triple chip grind. Miter, Radial Arm, Compound Miter.
