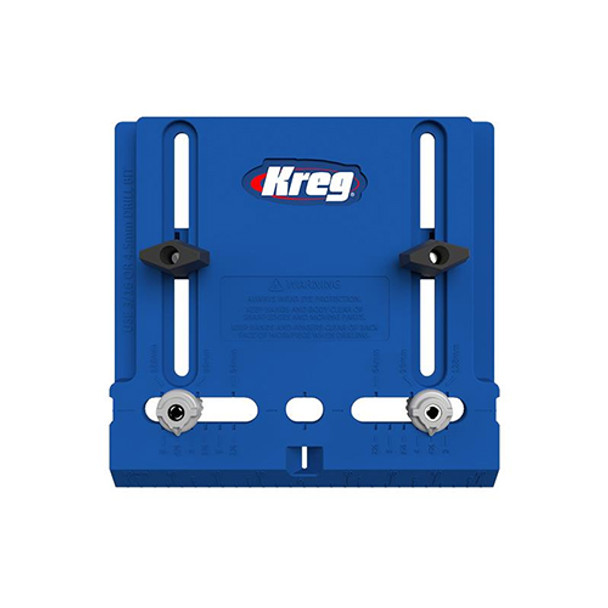

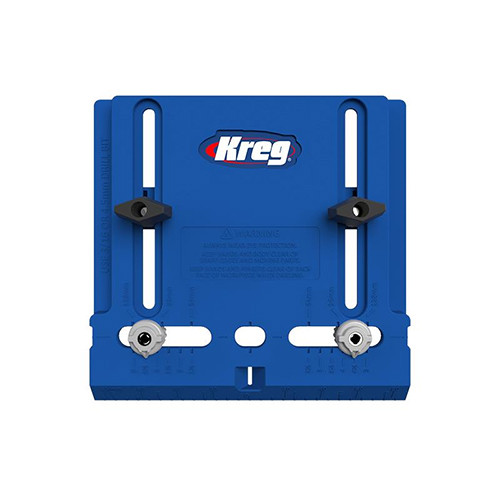

Kreg Cabinet Hardware Jig

$24.99
Item #: KR03218


Product Description


Install Knobs and Pulls the Worry-Free Way - with Easy, Repeatable Accuracy

  • Adjustable guides for accurate hole placement
  • Built-in measuring scales for repeatable results
  • Versatile for mounting single and multi-hole knobs
  • Adjustable edge guide for easy positioning
  • Strong, lightweight materials for easy handling
  • Durable hardened-steel drill guides

The Kreg Cabinet Hardware Jig takes the guesswork out of installing cabinet knobs and pulls. The movable edge guide and measuring scales make it easy to position knobs precisely, while adjustable drill guides ensure straight holes for perfect knob and pull positioning every time. Perfect for new construction and for refreshing entire rooms.

The Cabinet Hardware Jig provides a simple solution for the intimidating task of drilling mounting holes for cabinet knobs and pulls. Whether you're installing one new knob or dozens of drawer pulls, the Jig ensures that you'll drill accurately and consistently every time, so you get results that exceed your expectations.

Whether you're updating your cabinets or you're building a project from scratch, adding hardware like knobs and pulls is often one of the final steps-and one of the most intimidating. Drill the holes incorrectly, and it can be very difficult to correct the mistake. The Cabinet Hardware Jig takes all the guesswork out of the process by allowing you to drill straight, accurately positioned holes every time, so you'll know that every piece of hardware is positioned correctly and consistently.

The Cabinet Hardware Jig features moveable, hardened-steel drill guides that lock in place to align with common hole-spacing measurements for cabinet knobs and pulls. This allows you to confidently drill straight, accurately positioned holes. A moveable edge guide and built-in measuring scales (in imperial and metric) ensure that those holes will be positioned where you want it every time, which means you can drill as many holes as you need without the uncertainty and potential mistakes that can come with measuring and marking every one.

The Cabinet Hardware Jig is designed to be intuitive for beginners to use, but robust enough for professionals. All you need is a drill and a 3/16", bit, and the ability to set the jig to match your hardware and the position where you want it to go. Durable polymer construction makes the jig tough but light, and hardened-steel drill guides ensure that you'll get straight, accurate holes- whether you're drilling one, a few, or hundreds.

NOTE: 3/16" (5mm) drill bit required - does not come included.

Specifications:
  • Construction: Durable polymer
  • Drill guides: Two movable 3/16" (5mm) guides with locking nuts
  • Drill guide material: Hardened steel
  • Drill guide spacing: 2-1/2" (64mm), 3-1/4" (96mm), 5" (128mm)
  • Edge guide to hole-center spacing: 1" to 5" (25mm-127mm)
  • Measuring scales: Imperial and metric
  • In the box: (1) jig base, (1) edge guide, (2) drill guides with knurled nuts, (2) non-slip pads, (2) T-knobs and bolts, (1) owner's manual
