Figure 8 Desktop Fastener Clip (10pk)
Figure 8 Desktop Fastener Clip (10pk) Image

Figure 8 Desktop Fastener Clip (10pk)

$2.99
Item #: SL20001


Product Description

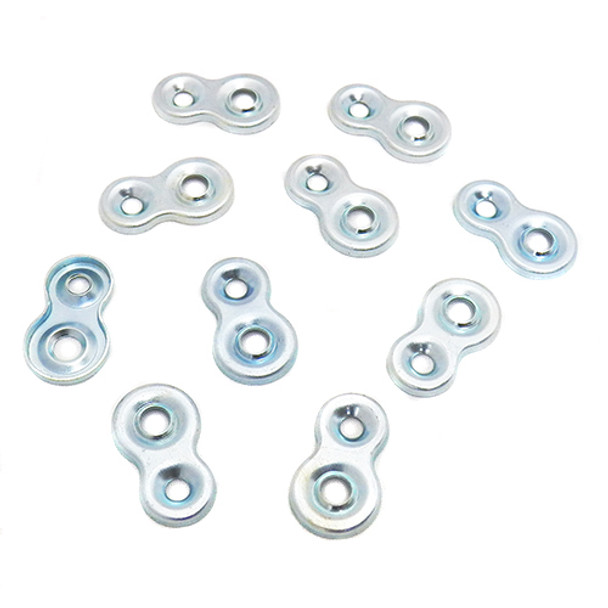

Stamped steel "figure 8" desk top fastener to mount desktop to pedestals. 1-5/16" long by 3/4" wide, zinc plated. Uses one #9 screw and one #11 screw.

Screws not included.

Instructions for use:
Drill several 5/8" holes 1/8" deep with a forstner bit along the top of the apron allowing the bit to overhang the inside of the apron 1/8". This allows the 3/4" side of the clip, which is used for fastening to the top, to swivel freely, allowing for expansion & contraction of the wood.

Run a screw snug but not tight fastening the figure 8 clip to the apron. Fasten the figure 8 clip to the top from underneath using a screw slightly shorter that the thickness of the top.
