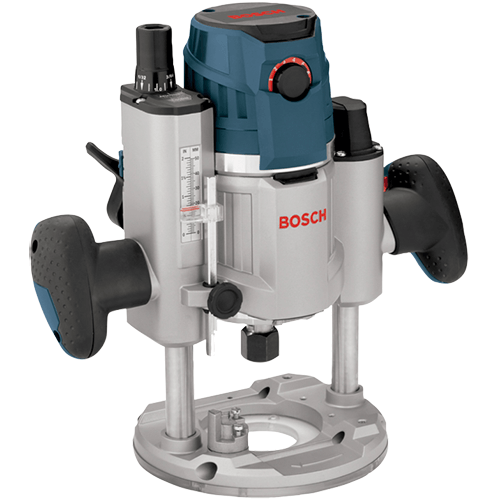

Bosch® Plunge Router, MRP23EVS, W/Plunge Base

$229.95
Item #: BO24010


Product Description


The Bosch MRP23EVS 2.3 HP Electronic Plunge-Base Router delivers greater control because of its trigger-controlled power system, which has a power switch in the plunge-base handle. The Afterlock_ microfine bit-depth adjustment fine-tunes at any plunge setting, and an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. It has a 15-amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response_ circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.

Includes
Plunge base
1/4" Self-Releasing Collet Chuck
1/2" Self-Releasing Collet Chuck
16mm Shaft Wrench
24mm Collet Nut Wrench

Benefits
Trigger-control system - trigger power switch located in handle for enhanced control
Powerful 15-amp motor - produces 10,000 to 25,000 rpm and 2.3 hp
Precision-centering design - makes it easy to keep bit on outline
Afterlock™ plunge-base depth adjustment - easy, precise adjustments at any plunge setting
Constant Response™ circuitry - maintains constant speed under load
Soft-start function - reduces start-up torque
Always-on LED lighting - for enhanced visibility in bit area
Two-stage quick clamp system - for fast tool-free conversion
Variable-speed dial - for matching speed to workpiece and task
Contoured soft grip handles - for enhanced control and comfort
Cord swivel - for added mobility
Contoured soft grip handles - provides enhanced control and comfort
Compatible with optional RA1129 Template Guide Adapter Set - for easy change of Bosch quick-release template guides and common threaded template guides; includes RA1126 Template Guide Adapter and RA1100 Interface for Threaded Template Guides (both also available in the RA1128 Template Guide Set)

Works With
Router Guide RA1054
Template Guide System - RA1128 Template Guide Set, RA1129 Template Guide Adapter Set
Centering Device for Subbases and Attached Template Guides RA1051
Dust Collection Attachments RA1175 Edge-forming Dust Hood, RA1177AT Three-Hood Dust Hood Set
Fixed-Base / Router Table Base MRF01

Specifications

Amperage: 15
Base diameter: 6-11/16"
Base opening: 3-5/16"
Case type: No case included
Collet capacity: 1/2" and 1/4"
Dust collection: No
Height: 12"
Length: 6.75"
Max tool HP: 2.3
No load RPM: 10,000 - 25,000
Plunge depth: 3" (75mm)
Rating: 120V AC
Voltage: 120V
Weight: 12.6lb
Width: 12.6"


GTIN:  000346393019
