Laguna 18|BX Bandsaw 220V 3HP
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image
    Laguna 18|BX Bandsaw 220V 3HP Image

Laguna 18|BX Bandsaw 220V 3HP

$1,999.00
Item #: DS18220


Product Description

Special freight is $99.00 for the DS18220

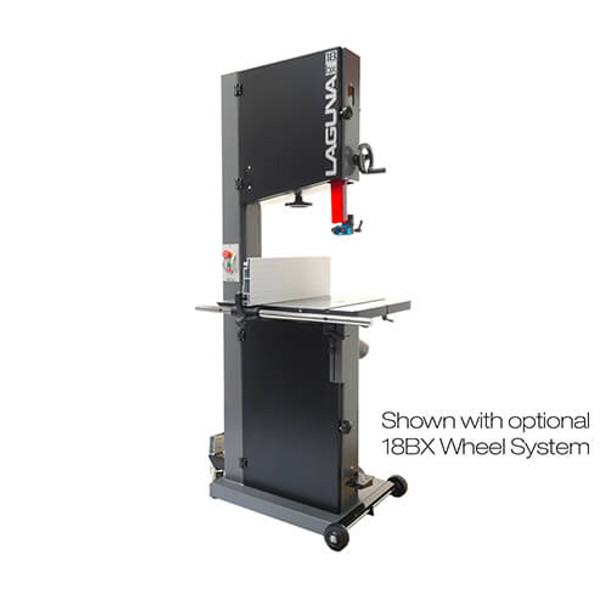

The 18|BX Bandsaw follows in the traditions of high-performance and reliability established by the widely-used Laguna Tools 14|12 and 14|bx models. The 18|bx is built around a 3HP, 220V motor and 145" (368 cm) blade for consistent results, cut-after-cut, regardless of material. (Shown with optional mobility kit)

  • Motor: 3HP, 220V, 1 Ph. 12 Amp.
  • Recommended Breaker: 20 Amp.
  • Magnetic Starter
  • Min-Max Blade width: 1/8"-1-1/4"
  • Resaw capacity: 16"
  • Throat: 18"
  • Blade length: 145"
  • Disc-Brake with Micro Switch
  • 220V Outlet on Back for Light
  • Window for Tension
  • Window for Tracking
  • Magnetic Blade Tension Guide
  • Worm Gear & Pinion Upper Guide
  • 10 Point Laguna Ceramic Guides
  • Flat Poly-Groove Drive Belt
  • Premium Anodized Insert with Micro Adjustment
  • Dynamically Balanced Cast Iron Wheels
  • Urethane Single Piece Snap-on Tire
  • Cast Table size: 20" x 26"
  • Table tilt: -6°, +45°
  • Quick-Release Tension
  • Hi/Low Anodized Aluminum Fence: 22 1/2" x 5 3/4" x 1/2"
  • Table height: 38"
  • Dust Ports: 2 x 4"
  • Overall height: 77-3/4"
  • Dimensions, base: 27" x 20"
  • Dimensions overall: 36" x 30"
  • Dimensions box: 82" x 34" x 24"
  • Weight (net/ship): 410/460 Lbs.


GTIN:  00650434694711
