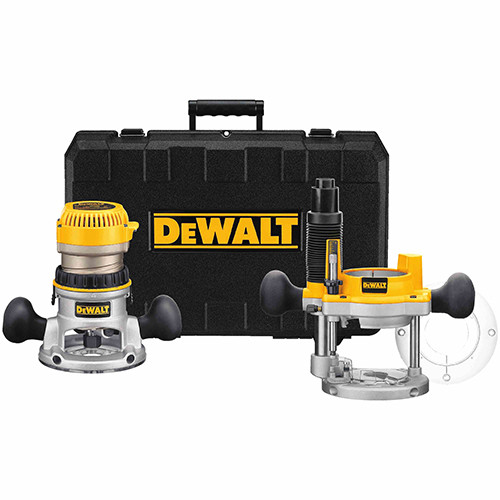

Dewalt 2.25HP Plunge Router Kit
Dewalt 2.25HP Plunge Router Kit Image

Dewalt 2.25HP Plunge Router Kit

Item #: DW618PK

Product Description


  • 2-1/4 HP (maximum motor HP), 12.0 Amp electronic variable speed motor provides the power to rout smoothly through the toughest hardwoods
  • Electronic variable speed with full feedback control for constant speed under load from 8,000-24,000 rpm and soft start to reduce start-up torque for enhanced control
  • Micro-fine depth adjustment ring provides precise depth adjustments in 1/64" increments and adjusts vertically for a constant switch/cordset location
  • Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking
  • Integral, through-the-column dust collection collects 95% of the dust and provides superior bit visibility
  • Quick release motor latches for fast and easy motor pack removal for bit and base changes
  • Detachable cordset offers cordset serviceability and the ability to use the same motor pack for all bases
  • Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy
  • Precision machined brass bushings and case-hardened steel guide rods provide a smooth and accurate plunge stroke
  • Spindle lock to allow for one wrench bit changes
  • Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings
  • Rubber overmolded handles and low center of gravity design provide best-in-class comfort, balance, and control
  • Dust-sealed switch provides durability and long switch life
  • Heavy duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight
  • Nickel plated motor housing for a smooth, long-lasting depth adjustment
  • Right or left switch and cordset location provides the ability to have the switch in your right or left hand
  • Flat top for easy bit and depth changes
  • Self-releasing, long, eight slotted collets for better bit retention and eliminating frozen bits
  • Five position, adjustable turret stop assists in stepped or repeated plunge cuts
  • Micro-fine depth adjustment on plunge base 5/128" per turn for precise routing in veneer and inlays
  • Easy to reach plunge lever and switch for superior control while routing


  • 12.0 Amps
  • 2-1/4 HP
  • No Load Speed:  8,000-24,000 rpm
  • Collet Diameter:  1/2", 1/4 "
  • Plunge Stroke:  2-1/2"
  • Depth Stop:  Micro-fine Ring
  • Base Dimension:  6"


  • DW618M motor pack
  • DW6184 fixed base
  • DW6182 plunge base
  • 1/4" and 1/2" collets
  • wrench
  • sub-base concentricity gauge
  • large hole sub-base
  • vacuum adaptor
  • heavy-duty kit box

GTIN:  028877428093
