MPX-30 technology combines rapid application and higher transfer efficiency
100% stainless steel fluid passages suitable for water-borne and solvent-based coatings
Perfect for any type of professional spray finishing
Optimized air cap design results in soft spray pattern and outstanding atomization
The Fuji MPX-30 Spray Gun has been developed to fill the gap between conventional high pressure spray guns and HVLP. Using
only medium pressure (mp) levels similar to reduced pressure (rp) spray guns, the MPX-30 combines rapid application speed
and higher transfer rates.
The MPX-30 is a general purpose spray gun perfect for any type of professional spray finishing. Versatile in terms of
application and performance handling all types of coatings with ease including high solid materials.
The Fan Pattern Controller offers precise fan adjustment reducing over-spray and waste. The gun is compact and lightweight -
easy to handle. The ergonomic design allows the spray gun to feel comfortable in the hand for extended periods of time.
The MPX-30 is also easy to operate embodying the same familiar controls as any conventional high pressure spray gun but
still offering the many benefits of HVLP.
Faster work is ensured by the particularly wide fan and the high material flow rates. At a spray distance of 8" the fan
pattern size ranges up to 13".
The Optimized Air Cap Design results in a soft spray pattern and outstanding atomization.
Due to the higher Air Cap Pressure, compared to HVLP compressor guns, less compressed air is required for atomization.
Fuji MPX Technology ensures transfer efficiency above 65% required by VOC Legislation. The added benefit is a considerable
savings in paint compared to conventional spraying equipment. Less thinning is required allowing for the highest color match
precision, high gloss and uniform paint distribution.
Requires 13.8cfm @ 36psi
1 year manufacturer's warranty
Nozzle and Air Cap size: Siphon Feed Gun is installed with 1.7mm.
Most spray guns on the market install stainless needle and nozzles however; most often the fluid passages are simply
existing alloy gun material which may be corrosive. The Fuji MPX-30 Spray Gun features 100% Stainless Steel Fluid Passages
in the gun suitable for Water-borne and Solvent-based coatings.
The spray gun body features a durable Black Electroplated Finish. Designed for full system application: Solvent-based
basecoats, low VOC colors or clear coat.
MPX Technology versus High Pressure
A conventional compressor spray gun can achieve a high degree quality of finish but it is at the expense of excessive
overspray and waste. Mid-Pressure (mp) can accomplish the exact same result with the added advantage of higher transfer
efficiency, reduced bounce-back, less overspray and huge material savings. The MPX-30 is an environmentally friendly spray
MPX Technology versus HVLP
To qualify under the term HVLP, air flowing through the Air Cap must not exceed 10 psi. Generally speaking, the much lower
velocity produces a softer, easier to control spray. This allows you to lay the paint on gently and not blast it on. Fuji
MPX Technology utilizes slightly more pressure than HVLP spray guns achieving much faster application speed and higher
Transfer efficiency rate are in excess of 65% and the quality of finish is equivalent to the best high pressure spray

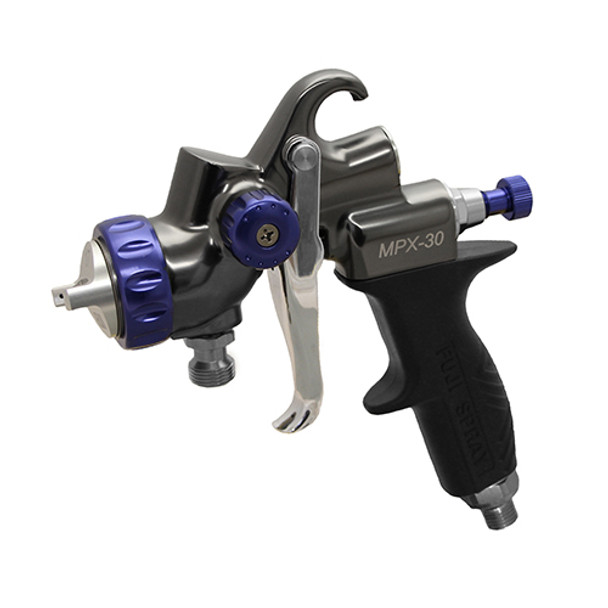

MPX-30 Spray Gun (Siphon)
1 Qt Siphon Cup
High Pressure Regulator Gauge
