Maksiwa Auto Edgebander Titanium Pre-Milling - 1 Phase 220v
(No reviews yet)
Write a Review
- SKU:
- MAK915
- MPN:
- CBC.TPM
- Shipping:
- Calculated at Checkout
Description
Maksiwa Auto Edgebander Titanium Pre-Milling - 1 Phase 220v
The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with a touchscreen panel, this machine ensures easy operation and delivers a flawless finish. An independent electronic converter controls each high-frequency motor.
Pre-milling in a small footprint
- Edge Tape: 0.4-2 mm
- Panel Thickness: 10-40mm
- 1 Phase 220V 60Hz
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 1 HF Motors
- Glue Pot Capacity 0.5kg | 1lbs Teflon Coated
- Automatic feeding Speed 21 ft/min
- Net Weight 1146 Lbs | 520 kgs
- Compact Design
- Melamine/PVC/ABS/PP
| CBC.TPM | SAE | METRIC |
|---|---|---|
| Automatic Feeding speed | 21 ft/min | 6.5 m/min |
| Panel thickness Min/Max | - | 10 - 40 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157" - 0.07" | 0.4-2mm |
| Glue Pot Capacity | 1lbs | 0.5 kg |
| Max Edgebanding Height | 1" | 30 mm |
| Minimum panel width | 4 3/4" | 120 mm |
| Minimum panel length | 7 7/8" | 200 mm |
| Extendable Panel Support Rail Length | 83 1/2" | 2122 mm |
| Extension table Max Width | 10" | 257 mm |
| Size of Dust Collector Ports | 5" | 127mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 7 SCFM @ 90 PSI | 0.7 Mpa 200 L/min |
| Edgebanding coil Support Diameter | 59" | 1498 mm |
| Recommended Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |
| Max. machine dimensions (LxWxH) | 93 1/2”x 40 13/16”x 53” | 2376 x 1028 x 1347 mm |
| Net weight | 1146 LBS | 520 KGS |
| Shipping dimensions (LxWxH) | 91” x 30” x 57” | 2320 x 760 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA | Granulated Hot-Melt EVA |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Sound Rating | 80 dB | 80 dB |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 30 Amps 60 Hz |
| Conveyer Motor | 60 Hz 1390 RPM .66 kw |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Top Buffing Motor | 60 Hz 1680 RPM .11kw |
| Bottom Buffing Motor | 60 Hz 1680 RPM .11kw |
| Sound Rating | 80 dB |
Videos
View AllClose
Related Products
Related Products
Sku: MAK007

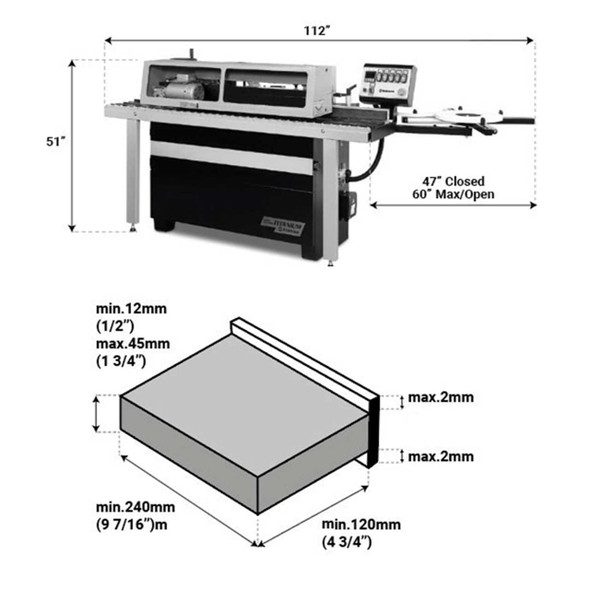

Maksiwa CBC.T Auto Edgebander Titanium 1 ph 220V
$12,999.00
Maksiwa CBC.T Auto Edgebander Titanium 1 ph 220V
Experience a finished product like never before. A masterpiece of engineering, this edgebander is packed with features to make your job easier. The...
Sku: MAK001

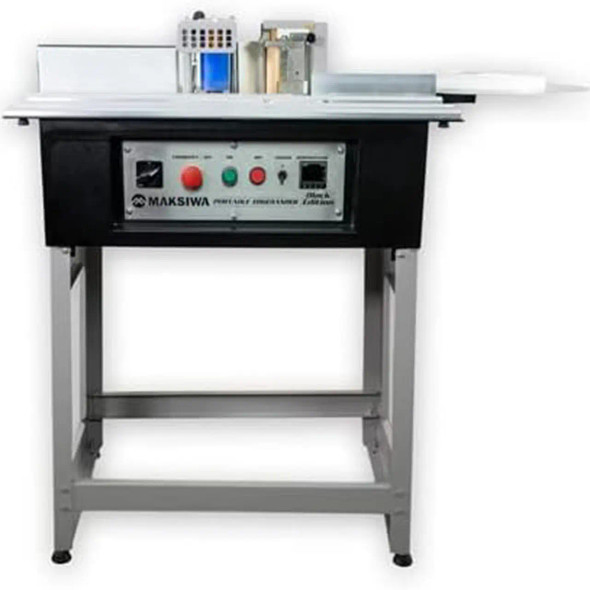

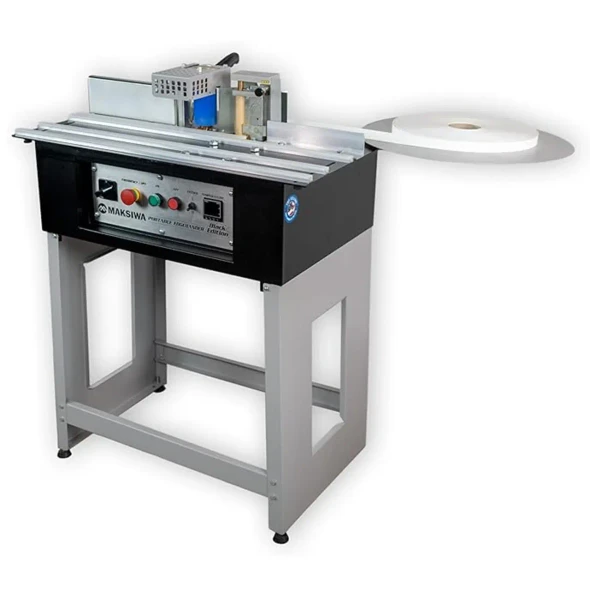

Maksiwa Portable Edgebander
$2,299.00
Maksiwa Portable Edgebander
Introducing the Portable Edgebander CBC.E! Its retractable legs and feet make it easy to transport and it can use any type of edgebanding tape up to 3” high and 2mm wide...
Sku: MAK900

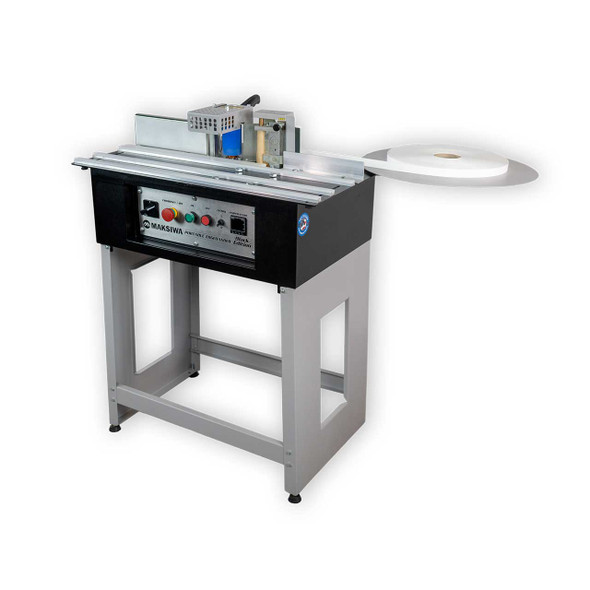

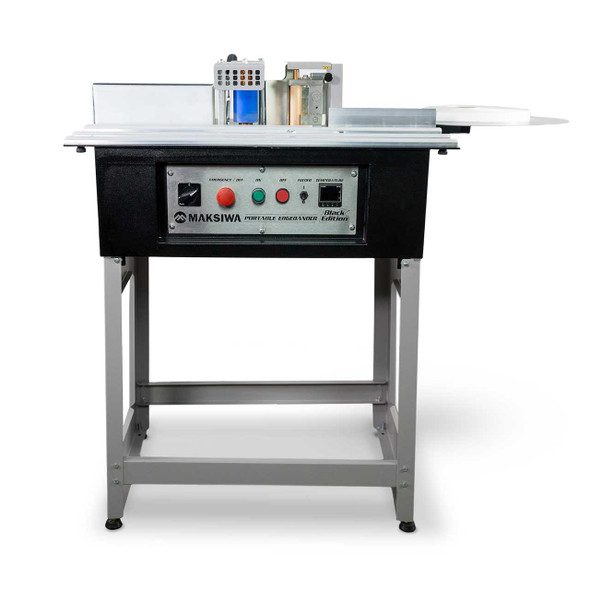

Maksiwa Edgebander-Edge Trimmer-Workbench Kit
$3,468.00
Maksiwa Edgebander-Edge Trimmer-Workbench Kit
Your All-in-One Edgebanding Solution: Introducing the Maksiwa Portable Edgebander + Edge Trimmer + Workbench Combo – the ultimate tool for precision...
Sku: MAK006

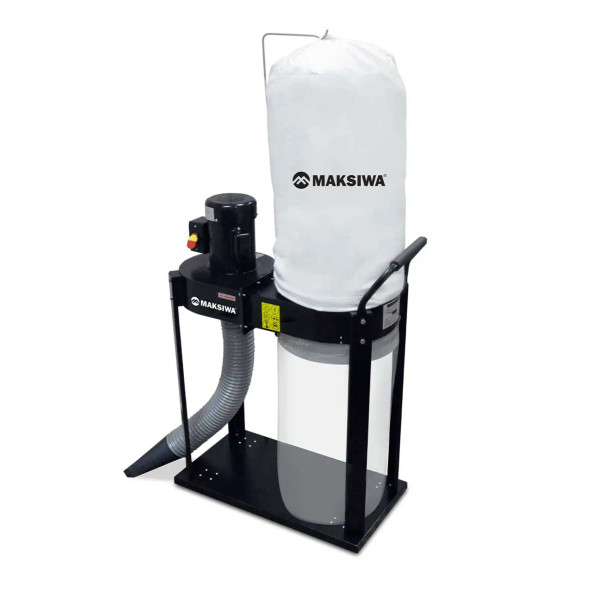

Maksiwa Dust Collector 1 HP
