Maksiwa Auto Edgebander Platinum Corner Rounding - 1 Phase 220v
(No reviews yet)
Write a Review
- SKU:
- MAK920
- MPN:
- CBC.PCR
- Shipping:
- Calculated at Checkout
Description
CBC.PCR – Edgebander Platinum Corner Rounding
The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 12HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 8-50mm.
Pre-milling & Corner Rounding in a small footprint
- Edge Tape: 0.4-3 mm
- Panel Thickness: 8-50mm
- 1 Phase 220V 60Hz
- Corner Rounding Unit
- Glue Scraper Unit
- Buffing Unit
- End Trimming HF Motor
- Pre-milling Unit 2 HF Motors with Diamond Cutters
- XMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)
- C.A.S.S - Cleaning Agent Spraying System
- Glue Pot Capacity 1.5kg | 3.3lbs Teflon Coated]\
- Automatic feeding Speed 18 ft/min
- Conveyor Chain Feed System for optimum results.
- High-frequency motor is controlled by an independent electronic converter.
- Net Weight 1653 Lbs | 750 kgs
- Compact Design
- Melamine/PVC/ABS/PP
| CBC.PCR | SAE | METRIC |
|---|---|---|
| Automatic Feeding speed | 18 ft/min | 5.5 m/min |
| Panel thickness Min/Max | 21/64” - 1 31/32” | 8 - 50 mm |
| Max Pre-milling Height | 1” | 30 mm |
| Edgebanding thickness | 0.0157" - 0.118" | 0.4-3mm |
| Glue Pot Capacity | 3.3lbs | 1.5 kg |
| Max Edgebanding Height | 2" | 51 mm |
| Minimum panel width | 4-3/4" | 120 mm |
| Minimum panel length | 7-7/8" | 200 mm |
| Extendable Panel Support Rail Length | 103" | 2627 mm |
| Extension table Max Width | 54" | 1371 mm |
| Size of Dust Collector Ports | 6" | 150mm |
| Minimum Dust Collection Requirements | 1236 CFM | 2100 m3/h |
| Air Pressure Requirement | 14 SCFM @ 90PSI | 0.7 Mpa 400 L/min |
| Edgebanding coil Support Diameter | 59" | 1498 mm |
| Recommend Glue Temperature Range | 356°F - 410°F | 180°C - 210°C |
| Max. machine dimensions (LxWxH) | 119”x 40-13/16”x 48-7/16” | 3026 x 1036 x 1230 mm |
| Net weight | 1653 LBS | 750 KGS |
| Shipping dimensions (LxWxH) | 111” x 30” x 57” | 2820 x 760 x 1448 mm |
| Glue Type | Granulated Hot-Melt EVA / PUR | Granulated Hot-Melt EVA / PUR |
| Electrical Information | 1 Phase 220V 30 Amps 60Hz | 1 Phase 220V 30 Amps 60Hz |
| Motor/Electrical | Specs |
|---|---|
| Electrical Requirement | 1 Phase 220V 40 Amps 60 Hz |
| Conveyer Motor | 60 Hz 1390 RPM .66 kw |
| Top/Bottom Trimmer HFM | 200 Hz 12,000 RPM .27kw |
| End/Corner Rounding Trimmer Motor | 200 Hz 12,000 RPM .27kw |
| Front/Rear Pre-Milling HFM | 150 Hz 9000 RPM .75/.25Kw |
| Top Buffing Motor | 60 Hz 1680 RPM .11kw |
| Bottom Buffing Motor | 60 Hz 1680 RPM .11kw |
| Sound Rating | 80 dB |
Videos
View AllClose
Related Products
Related Products
Sku: MAK915
Maksiwa Auto Edgebander Titanium Pre-Milling - 1 Phase 220v
$21,900.00
Maksiwa Auto Edgebander Titanium Pre-Milling - 1 Phase 220v
The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with...
Sku: MAK007
Maksiwa CBC.T Auto Edgebander Titanium 1 ph 220V
$12,999.00
Maksiwa CBC.T Auto Edgebander Titanium 1 ph 220V
Experience a finished product like never before. A masterpiece of engineering, this edgebander is packed with features to make your job easier. The...
Sku: MAK001

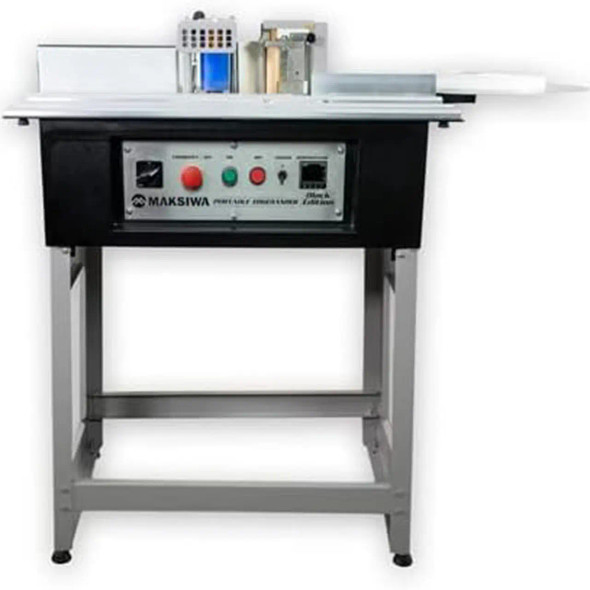

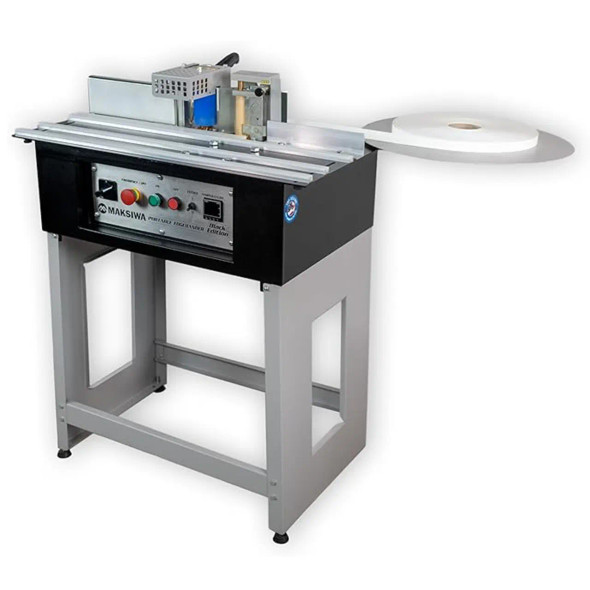

Maksiwa Portable Edgebander
$2,299.00
Maksiwa Portable Edgebander
Introducing the Portable Edgebander CBC.E! Its retractable legs and feet make it easy to transport and it can use any type of edgebanding tape up to 3” high and 2mm wide...
Sku: MAK900

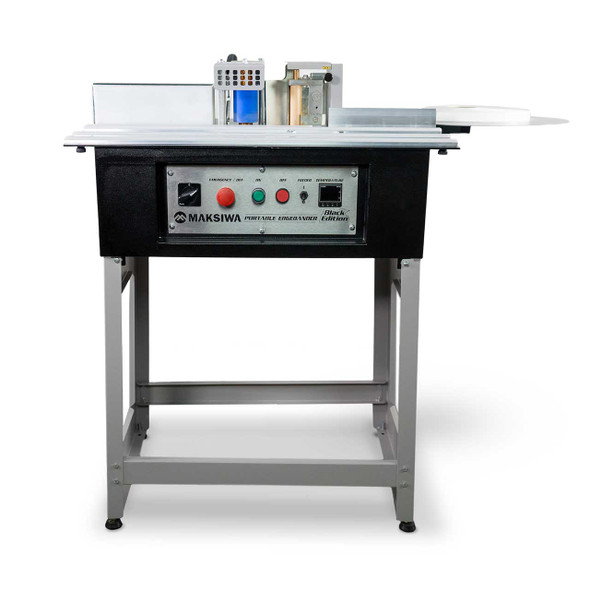

Maksiwa Edgebander-Edge Trimmer-Workbench Kit
