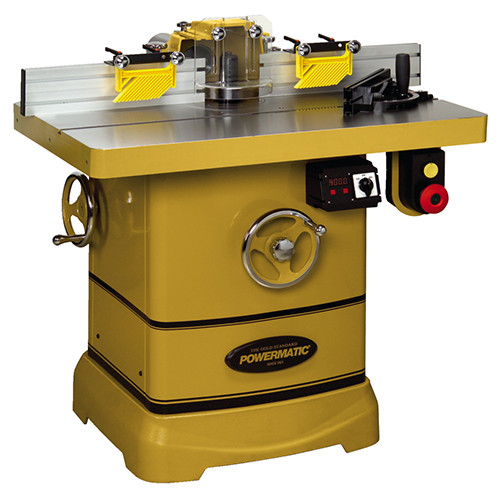

Powermatic PM2700 5HP 3PH Shaper

Powermatic PM2700 5HP 3PH Shaper

The new PM2700 Shaper offers more features than any other shaper in its class. It features an extra-large 30" x 40" precision-ground cast-iron table, along with a heavy-duty miter gauge and an aluminum extruded support.

One of its standout features is a built-in, omni-directional caster system (patent pending) that retracts into the base for easy transport. The machine also has a quick-release lever that facilitates fast speed and belt changes.

The extruded aluminum fence is equipped with several T-slots, allowing you to mount a wood face to create a no-clearance surface around any shaper or router bit. This fence design enables you to swiftly move it close to its final position, lock it in place, and then use precision micro-adjustments on each side of the cutter to achieve the exact alignment you need.

Additionally, the PM2700 includes a digital readout for spindle height adjustment, allowing you to make changes within .001". This precision is critical for aligning rail and stile cutters when making raised panel doors.

Details:

• Integrated caster system built into the cast iron base for instant shop mobility
• Spindle height digital readout for making fine incremental adjustments on multiple passes
• Heavy-duty 30" x 40" precision-ground tabletop for smooth stock feeding
• Convenient, quick lock belt tensioning for easy speed adjustment
• Industrial fence system with fine-adjust dials for more precise positioning
• 5HP totally enclosed motor offers plenty of power
• Two spindle speeds (reversible) for a variety of work
• Superior clear cutter guard promotes safety, allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• The fence has dual featherboards for work holding
• Dual 4" ports for attachment to a dust collection system

Standard Equipment:

• 3/4" and 1-1/4" interchangeable spindle collets
• Spindle height digital readout
• Featherboard hold downs
• Deluxe miter gauge
• Integrated caster system

Specifications:

• Part Number: 1280102C
• Warranty: 5 Year
• Spindle Speed: 7500 and 10,000 RPM
• Reversible: Yes
• Spindle Diameter: 3/4 and 1-1/4"
• Spindle Size Under Nut: 3/4 (3-3/4) and 1-1/4 (6)"
• Spindle Travel: 4
• Tilting Spindle: n.a.
• Table Size:40 x 30"
• Table Height From Floor: 35.5"
• Table Opening Diameter: 7-3/8"
• Table Insert Opening Diameter: 2-35/64, 4-5/32, and 5-3/4"
• Fence Size (L x H): 18-3/4 x 4-7/8"
• Fence Travel (Major and Minor): n.a.
• Slide Table Size (L x W): n.a.
• Table Travel: n.a.
• Table Inserts: 2-35/64, 4-5/32, and 5-3/4"
• Router Bit Collet Diameter:1/4 and 1/2" (optional)
• Dust Port Outside Diameter: 4" (dual ports)
• Dust Collection Minimum CFM Required: 600 cu.ft/min
• Electrical Controls - Magnetic Starter: Yes
• Digital Readouts: Spindle height
• Motor Power: 5 HP
• Motor Voltage: 230 / 460 V
• Prewired Voltage: 230 V
• Wiring Remarks: Requires a 460 V magnetic switch
• Motor Phase: 3 Ph
• Web Description: PM2700 Shaper, 5HP 3PH 230/460V
• Model Number: PM2700
• Brand: Powermatic
• Overall Dimensions: 40x37x45
• Height: 45 inches
• Width: 37 inches
• Length: 40 inches
• Net Weight: 664 pounds
