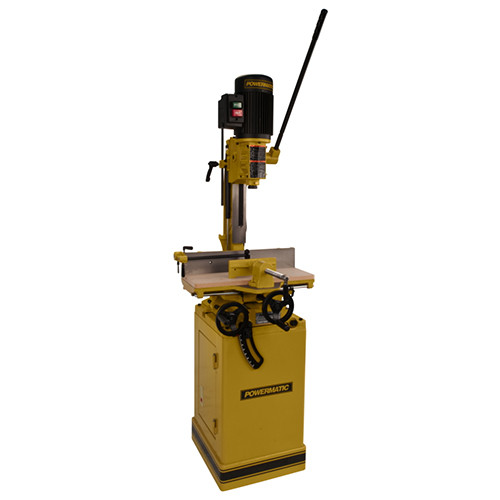

Powermatic 719T Mortiser 1HP 1PH 115/230

Powermatic 719T Mortiser 1HP 1PH 115/230

The 719T Tilt Table Mortiser is built with heavy-duty cast iron and features a powerful 1 HP motor to handle the most demanding jobs. The head is mounted on adjustable gibs, ensuring years of reliable service. It utilizes a heavy rack-and-pinion gear system with a spring-loaded, six-position adjustable handle for movement.

A convenient depth stop ensures consistent mortise depth, while the large table, measuring 20-1/4" x 7", provides ample support and can be adjusted to any angle between 0 and 35 degrees. The table can also slide left to right and move forward and back on dovetail ways, controlled by large handwheel mechanisms.

For precision repeatability, adjustable linear stops and a flip-down stop are included. The quick-adjust clamp offers a strong work-holding force and can swivel to accommodate angled workpieces. Additionally, the heavy enclosed steel cabinet provides ample storage space for chisels and accessories.

Details:

• Sturdy cast iron construction with precision-machined column and table
• Quick positionable, table-mounted swiveling vise clamp accommodates angled work pieces
• Feed lever features size, position,s allowing for quick adjustments
• Table and fence tilt from 0 to 35degrees  for angled mortises
• Gas cylinder-controlledd rack and pinion system for smooth head raising and lowering
• Hinged chuck door allows easy access for quick bit changes
• Quickly adjustthe  depth stop for uniform mortise depths
• Provided 5/8", 3/4" and 1-1/8" bushings allow multiple chisel shank sizes
• Handwheels controsmooth h-line and across-tableleble motions
• Adjustable work stop for repeat cuts

Specifications:

• Model #: 719T
• Brand: Powermatic
• Warranty: 5 Year
• Spindle Speed (RPM): 1725
• Chuck Size (in.): 1/2"
• Chisel Capacity (in.): 1/4" - 1"
• Chisel Shank Capacity (in.): 5/8" I.D., 3/4" I.D., 1-1/8" I.D.
• Head Stroke (in): 6"
• Chisel Center to Fence (in.): 4"
• Fence Size (L x H/in.): 4-1/2" x 20-1/4"
• Base Size (in.): 14" x 16"
• Base Overall Height (in.): 60"
• Bushing Size (in.): 5/8", 3/4", 1-1/8"
• Table Size (in.): 7" x 20-1/4"
• Table Tilt (deg.): 0 to 35
• Table Travel -Longitudinal (in): 15-1/2"
• Table Travel - Cross (in): 4"
• Motor HP: 1HP
• Motor Phase: 1PH
• Motor Voltage: 115/230V
