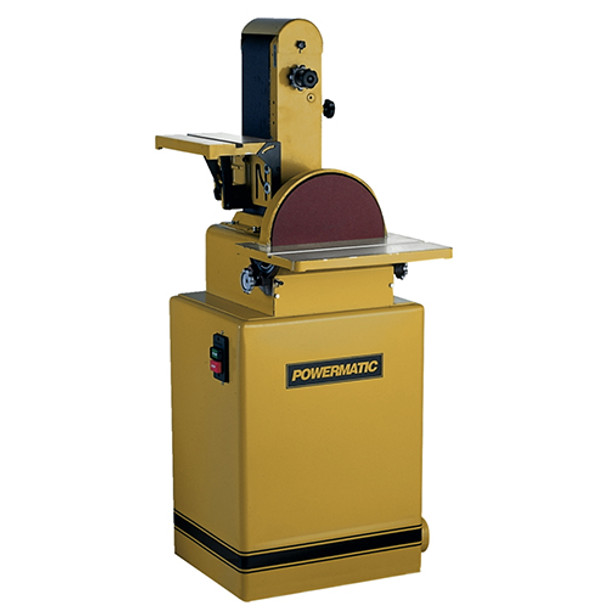

Powermatic 31A 6X48 Belt / Disc Sander

Powermatic 31A 6X48 Belt / Disc Sander

The Powermatic 31A is equipped with a variety of features that enable it to handle even the most demanding tasks. Its full cast iron construction allows for both metalworking and woodworking on the same machine. The Integral Dual Dust Port ensures that both the belt and disc components remain clean, which helps extend the life of the abrasives.

The articulating table on the 6" x 48" belt sander head can be adjusted to operate vertically, horizontally, or at an angle to suit different jobs. The belt head includes an indexing pin with stops at 0, 45, and 90 degrees, while the head lock allows for use at any angle in between. By removing the top guard, users can perform contour sanding. Additionally, the cast iron tables feature miter gauge slots and positive stops, making setup quick, accurate, and easy for any desired angle.

Details:

• Multi-position belt head locks at any angle from 0 to 90; includes indexing pin for 0, 45  and 90 stops
• Belt and disc tables are prprecision-groundast iron with miter slots
• Belt table tilts down to 45, and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12" disc is balanced for flat, even coverage

Specifications:

• Model #: 31A
• Brand: Powermatic
• Warranty: 5 Year
• Style: Combination Belt/Disc
• Belt Size (L x W/in.): 48" x 6"
• Disc Diameter (in.): 12"
• Belt Speed (SFPM): 2410
• Disc Speed (RPM): 2375
• Belt Table Tilt (deg.): 45 down
• Belt Table Size (L x W/in.): 13-1/4" x 7-1/2"
• Disc Table Size (L x W/in.): 17-1/4" x 9"
• Disc Table Tilt (deg.): 15 up, 45 down
• Table Working Height (disc/belt/in.): 34" disc, 36" belt
• Sanding Arm Locking Positions (deg.): 0, 45, and 90
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 400
• Base Size (in.): 20"W x 17-1/4"D x 27-1/2"H
• Motor HP: 1-1/2
• Motor Phase: 1
