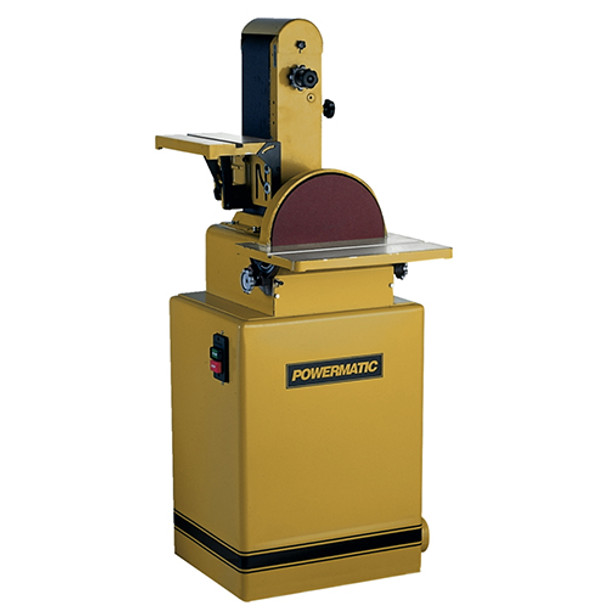

Powermatic 31A 6X48 Belt Disc Sander

Powermatic 31A 6X48 Belt Disc Sander

The Powermatic 31A is packed with features that can handle even the most demanding tasks. Its full cast-iron construction enables both metalworking and woodworking on the same machine. The Integral Dual Dust Port effectively keeps both the belt and disc sections clean, which helps extend the life of the abrasives.

The articulating table attached to the 6" x 48" belt sander head can be used in vertical, horizontal, or angled positions for a variety of projects. The belt head includes an indexing pin with stops at 0, 45, and 90 degrees, while the head lock allows for use at any angle in between. By removing the top guard, contour sanding becomes possible. Additionally, the cast iron tables have miter gauge slots and positive stops, making set-up fast, accurate, and simple for any angle.

Details:

• Multi-position belt head locks at any angle from 0 to 90; includes indexing pin for 0, 45  and 90 stops
• Belt and disc tables are prprecision-groundast iron with miter slots
• Belt table tilts down to 4 , and can be set for beveled and mitered angle sanding
• Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
• 12" disc is balanced for flat, even coverage

Specifications:

• Model #: 31A
• Brand: Powermatic
• Warranty: 5 Year
• Style: Combination Belt/Disc
• Belt Size (L x W/in.): 48" x 6"
• Disc Diameter (in.): 12"
• Belt Speed (SFPM): 2410
• Disc Speed (RPM): 2375
• Belt Table Tilt (deg.): 45 down
• Belt Table Size (L x W/in.): 13-1/4" x 7-1/2"
• Disc Table Size (L x W/in.): 17-1/4" x 9"
• Disc Table Tilt (deg.): 15 up, 45 down
• Table Working Height (disc/belt/in.): 34" disc, 36" belt
• Sanding Arm Locking Positions (deg.): 0, 45, and 90
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 400
• Base Size (in.): 20"W x 17-1/4"D x 27-1/2"H
• Motor HP: 2
• Motor Phase: 3
