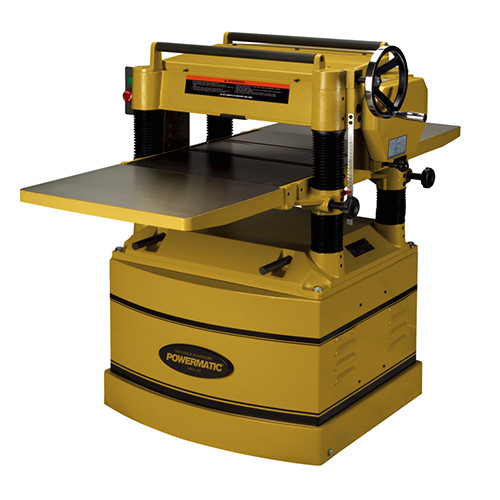

Powermatic 209 20" 5HP 3PH 460V Planer

Powermatic 209 20" 5HP 3PH 460V Planer

This heavy-duty planer delivers impressive performance and value, equipped with standard features that are often unavailable on competing machines. It boasts a powerful 5HP motor and a 20" planing capacity, making it suitable for even the most demanding tasks. The 5" dust port easily connects to any dust collector, enhancing cleanup efficiency.

The cutterhead is fitted with four high-speed steel knives that rotate at 5,000 RPM, producing an astounding 20,000 cuts per minute. Anti-kickback fingers and a pressure bar are strategically placed near the cutterhead to ensure an exceptional finish.

Built for production, the solid cast iron base, table, and head provide stability and durability. The 2-speed oil bath gearbox transmits full power to the feed rollers and allows for quick speed changes between 24 and 31 feet per minute (FPM). The included gear also enables a 4-speed setting, offering lower speeds of 16 and 20 FPM.

To ensure a smooth feed, the planer features corrugated infeed and fine groove outfeed rollers. The precision-ground and polished cast iron table is supported by four steel columns, providing ample support for larger workpieces. Additionally, heavy cast-iron extension wings ensure a flat, smooth cut.

Details:

• 5HP motor and 20" planing capacity for heavy-duty work
• Fully enclosed base cabinet with integrated casters for shop mobility
• Cast iron table with extensions creates a big 55-1/2" x 20" working area
• Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
• Feed rollers and the cutterhead are supported by a full cast-iron head assembly for rigidity

Standard Equipment:

• Single-sided knives
• 5" diameter dust port
• Cast iron extension tables
• Knife setting gauge

Specifications:

• Model #: 209
• Brand: Powermatic
• Warranty: 5 Year
• Maximum Planing Width (in.): 20"
• Maximum Planing Thickness (in.): 8"
• Maximum Depth of Cut (in.): 3/32"
• Minimum Planing Length (in.): 6-3/4"
• Cutterhead Diameter (in.): 3-3/16"
• Cutterhead Speed (RPM): 5000
• Cuts Per Minute: 20000
• Feed Rate (FPM): 24 and 31 (16 and 20 with gear change)
• Number of Knives: 4
• Table Size (in.): 20" x 55-1/2" (w/ extensions)
• Dust Port Diameter (OD/in.): 5"
• Dust Collection Minimum CFM Required: 900
• Blade Size: 20 x 1 x 1/8
• Readout Scale: in/mm
