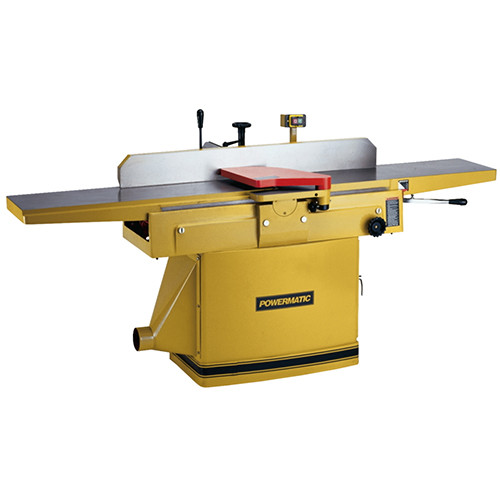

1285 12" 3HP 1PH Jointer W/Helical Head

1285 12" 3HP 1PH Jointer W/Helical Head

This 12-inch jointer boasts impressive capacity and performance, featuring a variety of user-friendly elements. The large, center-mounted fence assembly is easy to adjust using a rack-and-pinion system equipped with a ram lock. It includes preset stops on the fence body for quick adjustments to 45 degrees, both inward and outward, as well as a positive stop for precise 90-degree angles.

The jointer's parallelogram design keeps the table close to the cutterhead, enhancing finish quality and allowing quick depth-of-cut adjustments. This design also ensures that the tables remain perfectly parallel, even after years of heavy use. Users can choose between a standard three-knife cutterhead and a solid-steel helical cutterhead. The helical system simplifies knife changes and requires no additional adjustments.

Details:

• Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments
• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Large 84" x 12" table surface for heavy-duty work
• Table "lips" on both sides of the cutterhead aid in noise reduction
• Full-size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
• 3HP motor provides plenty of power

Standard Equipment:

• Cutterhead guard
• Heavy-duty fence
• Dust port
• Push blocks
• Tool kit

Specifications:

• Part Number: 1791307
• Warranty: 1 Year
• Cutting Capacity (W x D): 11-3/4 x 3/4"
• Cutterhead Speed: 5000 RPM
• Number of Knives (Helical/Standard): 44 two-sided inserts (includes 2 rabbeting)
• Standard Knife Size (L x W x T): 30 x 12 x 2 mm
• Table Height: 31-1/2"
• Table Size (L x W): 84 x 12"
• Fence Size (L x H): 47 x 5-1/2"
• Fence Tilts: 45° left, 45° right
• Fence Positive Stops: -45°, 45° and 90°
• Dust Port Outside Diameter: 6"
• Dust Collection Minimum CFM Required: 800 cu.ft/min
• Motor Power: 3 HP
• Motor Phase: 1 Ph
• Motor Voltage: 230 V
• Model Number: 1285
• Brand: Powermatic
• Overall Dimensions: 89.5 x 28 x 39
• Height: 39 inches
• Width: 28 inches
• Length: 89.5 inches
• Net Weight: 762 pounds
