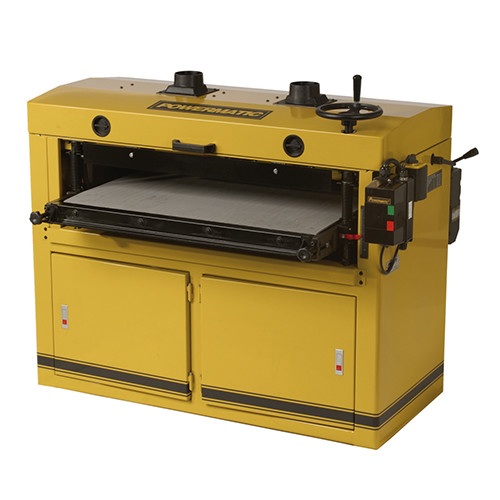

DDS-237 37" 10HP 3PH 460V Dual Drum

DDS-237 37" 10HP 3PH 460V Dual Drum

This production-class Dual Drum Sander is equipped with numerous features. It operates with a powerful 10 HP motor that drives dual steel drums, which are coated with hard durometer rubber to ensure a flat, mar-free finish. The rear drum is independently adjustable, making fine-tuning simple and efficient.

The sander features a heavy cast-iron table supported by four solid jackscrews and a chain-drive system, ensuring level alignment at all times. Additionally, the heavy-duty poly conveyor belt provides a secure grip on the material being sanded.

A 1/4 HP feed motor works in conjunction with a two-speed forward/reverse gearbox, allowing for sanding speeds of 8 and 12 surface feet per minute. The sturdy steel cabinet minimizes vibration during operation and provides ample storage space underneath.

Details:

• 10HP motor for plenty of power
• Independently adjustable rear drum for fine-tuning
• Hard durometer rubber coating on steel drums provide flat, smooth finish
• Two-speed gearbox for a wide range of sanding projects
• Full-size cast-iron table for solid support
• Forward/reverse poly conveyor belt grips stock evenly
• Dual dust ports with directional baffles for more efficient dust removal

Standard Equipment:

• Two-speed gearbox
• Dual 4" dust ports
• Sandpaper installed on drums
• Tool kit

Specifications:

• Part Number: 1791321
• Warranty: 1 Year
• Maximum Board Width: 37
• Minimum Board Length: 9"
• Maximum Board Thickness: 5-1/4"
• Minimum Board Thickness: 1/32"
• Drum Diameter: 6"
• Sanding Drums (number of drums): 2
• Drum Length: 37"
• Drum Speed: 1700 RPM
• Conveyor Motor: 1/4 HP
• Dust Port Outside Diameter: 4" (dual ports)
• Dust Collection Minimum CFM Required: 1200 cu.ft/min
• Motor Power: 10 HP
• Motor Voltage: 230 / 460 V
• Prewired Voltage: 230 V
• Motor Phase: 3 Ph
• Model Number: DDS-237
• Brand: Powermatic
• Overall Dimensions: 60 x 45 x 45
• Height: 45 inches
• Width: 45 inches
• Length: 60 inches
• Net Weight: 990 pounds
