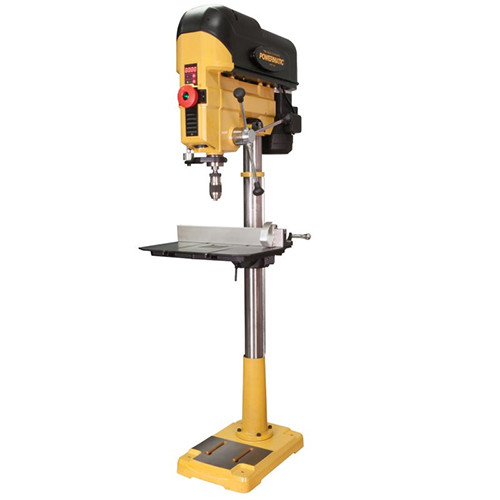

Powermatic PM2800B 18" Drill Press

Powermatic PM2800B 18" Drill Press

The PM2800B simplifies operations in your shop with its user-friendly design. Its mechanical elegance is truly distinctive and can only be found in a Powermatic product. Like all Powermatic offerings, the PM2800B exemplifies cutting-edge design, innovation, and durability.

• Mechanical variable speed allows for a full range of speeds with no belt changes
• 6" of quill travel with one revolution of the handle
• Fence system adjustable for a perfect 90-degree relationship to the table, for rapid alignment of stock
• Adjustable material stop makes repetitive actions accurate and quick
• A digital RPM readout allows the user to optimize the spindle speed to the application
• Laser guides provide an accurate indication of the tool point
• Keyless chuck makes bit changes easier
• Reversible handles can be mounted on either side of the machine for more comfortable working of the quill
• Two independent LED worklights eliminate shadowsThee worktable can be rotated to a full 90-degree position
• Replaceable square table insert with leveling screws makes it flush with the top of the table
• Oversized cast-iron base for added stability
• Safety key prevents accidental starting

Specifications:

• Swing: 18"
• Spindle Travel: 6"
• Number of Spindle Speeds: Variable
• Spindle Taper: MT-2/JT-3
• Spindle Distance to Table (Max.): 27-3/8"
• Spindle Distance to Base: 46-1/4"
• Table Size (L x W): 20" x 14"
• Table Tilt (Deg.): 0 to 90
• Fence Size (L x H): 19-13/16" x 2-11/16"
• Chuck Distance to Base: 43-13/32"
• Chuck Distance to Table: 24-1/2"
• Chuck Size: 5/8"
• Column Diameter: 3-1/8"
• Base Size: 13-3/8" x 20"
• Motor Power (HP): 1
• Motor Phase: 1
• Motor Voltage (V.): 115/230
• Prewired Voltage (V.): 115
• Motor Current (Amps): 15/7.5
