Description

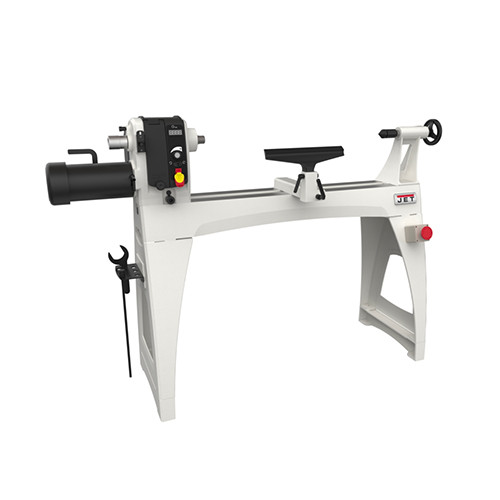

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop this lathe features a headstock that slides the full length of the bed and pivots 360° with seven positive locking positions. The included four-inch cast iron risers allow you to easily choose the working height that maximizes your comfort.
Features:
- Extended spindle nose houses dual headstock spindle bearings
- Four inch cast iron risers allow user to adjust height of lathe for maximum comfort
- Improved tailstock quill locking mechanism incorporates an anti-rotation key
- Tailstock features Acme threads for smooth and durable movement
- Banjo uses non-marring, positive locking wedge system to securely hold tool post
- Tool post locking mechanism designed for year of consistent strength
- Spindle lock latch frees up both hands
- Electronic infinitely variable speed from 40 - 3200 RPM
- 36 integrated indexing positions
- Newly designed headstock locking handle accessible from front of lathe
- Remote emergency stop button can be situated along the lathe bed
- Convenient leg-mounted tool holder
- Conveniently located digital readout
- Rubber tool mat on top of headstock
- E Drive Inverter features a built in EMI filter
- Inverter is enclosed for added protection
Specifications
| Swing over bed: | 18-1/2" |
| Swing over tool rest base: | 14-1/4" |
| Distance between centers: | 40" |
| Headstock movement: | Slide |
| Spindle bore: | 5/8" |
| Tailstock bore: | 3/8" |
| Spindle taper: | MT2 |
| Quill taper: | MT2 |
| Quill travel: | 4-1/4" |
| Spindle thread: | 1-1/4" / 8 TPI |
| Spindle speeds: | High 120-3200/Low 40-1200 |
| Speed range: | 40-3200 |
| Number of indexing positions: | 36 |
| Centerline of spindle to floor : | 39-1/4"; 43-1/4" w/risers |
| Bed construction: | Cast iron |
| Motor power (HP): | 2 |
| Motor Phase (PH): | 3 |
| Motor voltage (V.): | 230 |
| Prewired voltage (V.): | 230 |
| Wiring remarks: | 230v, 1ph input only |
| Motor amps: | 6.1 |
| Recommended circuit size (amps.): | 20 |
