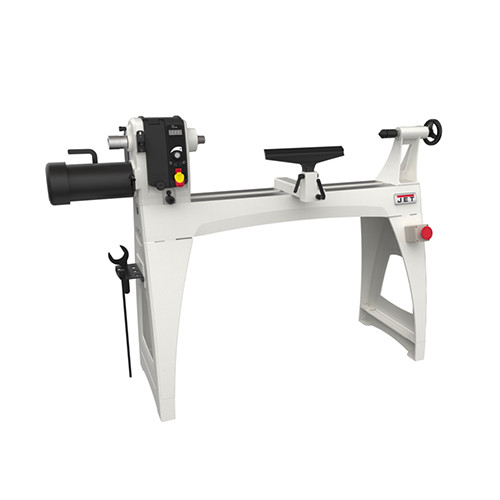

Jet JWL-1840EVS Lathe 2HP 230V

(No reviews yet) Write a Review
SKU:
DS719600
Shipping:
$350.00 (Additional Shipping Charge, Details in Description)
$3,959.00
Drop Shipped from Manufacturer

Description

Jet JWL-1840EVS Lathe 2HP 230V

Introducing the 1840EVS woodworking lathe from JET. Designed to be as versatile as you are in the shop, this lathe features a headstock that slides the full length of the bed and pivots 360° with seven positive locking positions. The included four-inch cast-iron risers let you easily choose a working height that maximizes your comfort.

Features:

  • The extended spindle nose houses dual headstock spindle bearings
  • Four-inch cast iron risers allow the user to adjust the height of the lathe for maximum comfort
  • Improved tailstock quill locking mechanism incorporates an anti-rotation key
  • Tailstock features Acme threads for smooth and durable movement
  • Banjo uses a non-marring, positive locking wedge system to securely hold the tool post
  • Tool post locking mechanism designed for years of consistent strength
  • Spindle lock latch frees up both hands
  • Electronic infinitely variable speed from 40 - 3200 RPM
  • 36 integrated indexing positions
  • Newly designed headstock locking handle accessible from the front of the lathe
  • The remote emergency stop button can be situated along the lathe bed
  • Convenient leg-mounted tool holder
  • Conveniently located digital readout
  • Rubber tool mat on top of the headstock
  • E Drive Inverter features a built-in EMI filter
  • The inverter is enclosed for added protection

Specifications:

Swing over bed: 18-1/2"
Swing over tool rest base: 14-1/4"
Distance between centers: 40"
Headstock movement: Slide
Spindle bore: 5/8"
Tailstock bore: 3/8"
Spindle taper: MT2
Quill taper: MT2
Quill travel: 4-1/4"
Spindle thread: 1-1/4" / 8 TPI
Spindle speeds: High 120-3200/Low 40-1200
Speed range: 40-3200
Number of indexing positions: 36
Centerline of spindle to floor : 39-1/4"; 43-1/4" w/risers
Bed construction: Cast iron
Motor power (HP): 2
Motor Phase (PH): 3
Motor voltage (V.): 230
Prewired voltage (V.): 230
Wiring remarks: 230v, 1ph input only
Motor amps: 6.1
Recommended circuit size (amps.): 20
