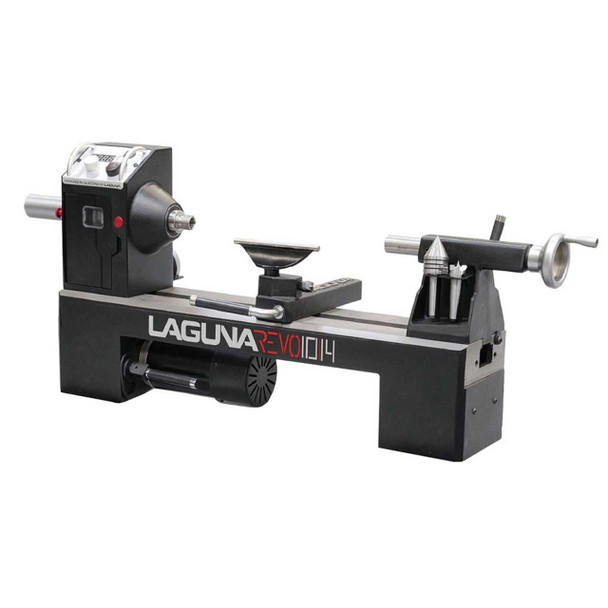

Laguna 10|14 Revo Lathe

Laguna 10|14 Revo Lathe

Laguna's smallest Revo lathe features a strong 1HP PWM motor with electronic variable speed and a digital readout, along with many features typical of larger lathes!

The Laguna Revo 10|14 Benchtop Lathe brings the proven features of larger lathes from Laguna's Revo line into a compact 10-inch format. Its 1HP Pulse Width Modulation (PWM) induction motor delivers constant torque across a variable-speed range, ensuring it never lacks power, even at low speeds or during heavy cuts. Speed adjustments within the three pulley speed ranges are simple and can be made with a twist of a dial.

This lathe boasts a 10-inch swing capacity, making it ideal for turning bowls and other large projects, and offers up to 14 inches between centers for spindle work. The 6-inch tool rest features a hardened-steel edge that resists nicks and provides a smooth surface for tool use. Additionally, the headstock's protruding nose cone enhances tool access when working on the backsides of large workpieces mounted on a faceplate or scroll chuck.

Laguna Revo 10|14 Benchtop Lathe Features:

• Powerful PWM induction motor maintains consistent torque at any speed
• Headstock nose cone provides wider spindle bearing spacing for added durability and improves tool clearance around large workpieces
• Rugged cast-iron bed adds mass and reduces vibration
• Electronic variable-speed control
• Ergonomic control panel with an easy-to-read digital speed display
• Spindle reverses for easier sanding
• 6-inch tool rest with a hardened-steel edge for smooth tool use
• Luxury live center and spur drive with on-board storage
• Three-pulley drive with a poly-groove drive belt
• Convenient, quick belt tension release and dual-door belt access
• Viewing window to check belt position
• Durable heat-treated drive spindle
• 24 spindle indexing positions
• Tailstock quill etched with inches and millimeters
• Large, comfortable control handles on the banjo and tailstock
• Push-button spindle lock; on-board accessory tool storage
• Auxiliary 120-volt outlet and pre-drilled mounts for installing an optional LED work light
