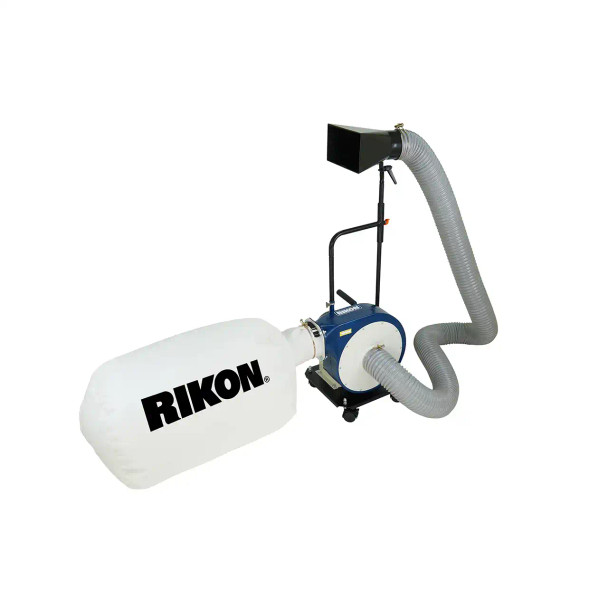

Rikon Portable Dust Collector 1HP Model 60-105
- SKU:
- RK60105
- UPC:
- 814463012964
- MPN:
- 60-105
- Shipping:
- $30.00 (Additional Shipping Charge, Details in Description)
Description
Rikon Portable Dust Collector 1HP Model 60-105
1 HP portable dust collector #60-105 is a great size and adaptable for many uses that a small shop encounters.
Single 4 In. dust port draws 660 CFM, more than enough vacuum power for big chip makers, like joiners and planers. Built-in casters and handles make moving it about easy.
Features an adjustable pipe extension with a chip collecting funnel that can be positioned high for use with lathes, drill presses, workbenches, etc.
Includes 2-micron cloth filter bag, 108 In. long x 4 In. dust hose, adjustable pipe & funnel attachment system, safety on/off switch, and wall mounting brackets.
1 HP develops 660 CFM 4 In. dust port inlet for attaching to a single machine Includes casters for easy mobility around the shop
Includes adjustable pipe & funnel system for dust collection use with lathes, drill presses, workbenches, etc. can be positioned up to 55 In. high.
- Dust Collection Keeps Your Shops Air Breathable
- 1 HP TEFC Motor
- 10″ Blower Wheel Diameter
- Draws 660 Cubic Feet Per Minute
- 4″ Hose Inlet
Specifications
| Motor Horsepower | 1 HP TEFC |
| Motor Amps | 7.5/3.75 |
| Motor Volts | 115/230V, 60 Hz |
| Motor RPM | 3,400 |
| Air Flow @ 4" Diameter | 660CFM |
| Blower Wheel Diameter | 9” |
| Blower Wheel Material | Steel |
| Bag Filtration | 2 Microns |
| Bag Diameter | 16” |
| Bag Length | 22” |
| Bag Capacity | 2.4 Cubic Feet |
| Hose Connection | 1@4” |
| Sound Rating @ 3 feet | <78 dB |
| Overall Height | 19” |
| Overall Width | 14-1/2” |
| Overall Length | 18” |
| Overall Net Weight | 48 lbs. |
| Intake Funnel Size | 9” x 4-3/4” |
| Maximum Funnel Height | 55” |
| Dust Hose Size | 9’ Long x 4” Diameter |
