Sawstop Scale Miter Gauge

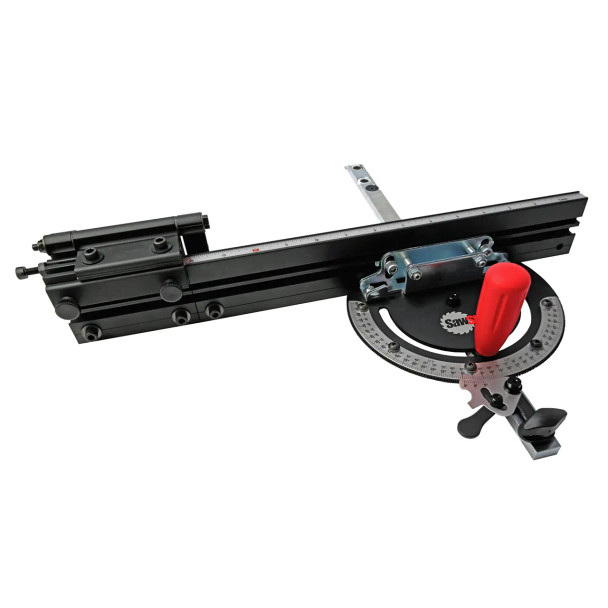

Scale Miter Gauge

Bring can’t-miss accuracy to your table saw with the Scale Miter Gauge, featuring 180 precise locked-in angles, an extendable fence, and a micro-adjustable dual-arm flip stop.

The miter head features a pointer and 90 notches in 1° increments on each side of 0°, including one for 22.5° on each side. A Vernier scale lets you fine-tune any angle in 1/10° increments.

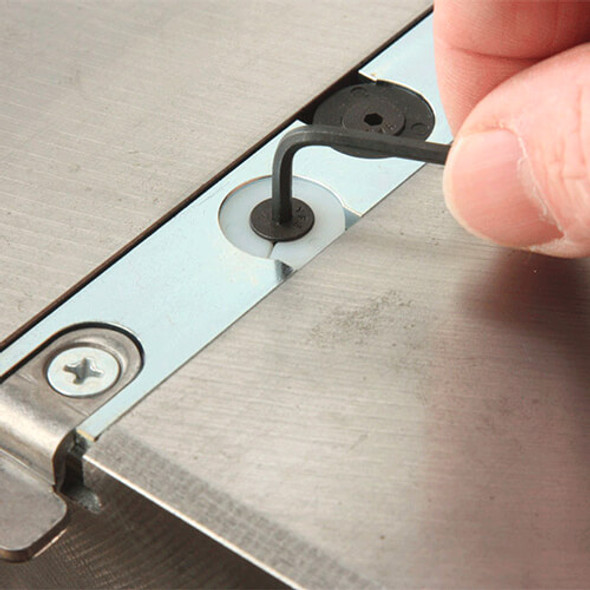

An 18”-long miter bar uses six adjustable washers to eliminate movement in the miter slot while ensuring a smooth glide forward and back.

The aluminum fence provides a large reference for workpieces, with a telescoping extension that reaches up to 31” with the flip stop. The scale on top of the fence can be calibrated to enable precise crosscuts without having to measure and mark your boards.

Use the flip stop to make repeated cuts at the same setting for identical project parts. The flip stop indexes on the fence in 1/32” increments. The flip stop’s dual arms can be set independently at different lengths from the blade or linked together, all of which can be fine-tuned with a micro-adjuster.

Specifications
