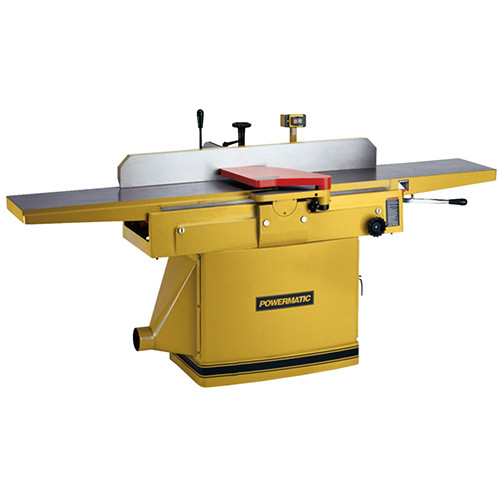

Powermatic 1285 12" 3HP 1PH Jointer

Powermatic 1285 12" 3HP 1PH Jointer

This 12-inch jointer provides impressive capacity and performance, packed with a variety of features. The large center-mounted fence assembly is easy to adjust using a rack-and-pinion system with a ram lock. It features preset stops on the fence body for quick angle adjustments at both 45° and a positive stop for achieving perfect 90° angles.

Its parallelogram design keeps the table close to the cutterhead for a better finish and allows for quick adjustments to the depth of cut. This design also ensures that the tables remain perfectly parallel, even after years of heavy use. You can choose between a standard three-knife cutterhead or a solid steel helical cutterhead. The helical system simplifies knife changes and requires no adjustments.

Details:

• Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
• Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
• Large 84" x 12" table surface for heavy-duty work
• Table "lips" on both sides of the cutterhead aid in noise reduction
• Full-size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep
• 3HP motor provides plenty of power

Standard Equipment:

• Cutterhead guard
• Heavy-duty fence
• Dust port
• Push blocks
• Tool kit

Specifications:

• Part Number: 1791241
• Warranty: 1 year
• Cutting Capacity (W x D): 11 3/4 x 3/4"
• Cutterhead Speed: 5000 RPM
• Cuts Per Minute: 15000
• Number of Knives (Helical/Standard): 3 standard
• Standard Knife Size (L x W x T): 12 x 1 3/16 x 1/8"
• Rabbeting Capacity 3/4"
• Table Height: 31-1/2"
• Table Size (L x W): 84 x 12"
• Fence Size (L x H): 47 x 5 1/2"
• Fence Tilts: 45° left, 45° right
• Fence Positive Stops: -45°, 45° and 90°
• Dust Port Outside Diameter: 6"
• Dust Collection Minimum CFM Required: 800 cu.ft/min
• Motor Power: 3 HP
• Motor Phase: 1 Ph
• Motor Voltage: 230 V
• Model Number: 1285
• Brand: Powermatic
• Overall Dimensions: 89.5 x 28.5 x 39
• Height: 39 inches
• Width: 28.5 inches
• Length: 89.5 inches
• Net Weight: 835 pounds
