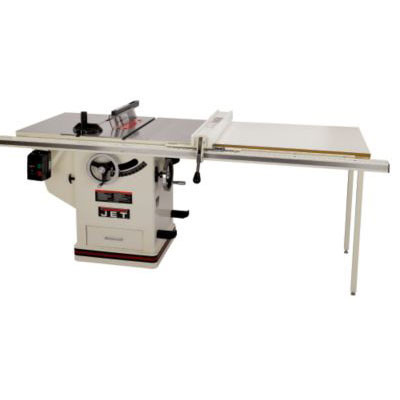

Jet 10" Xacta Tablesaw W/ 50" Fence 3HP

Jet 10" Xacta Tablesaw W/ 50" Fence 3HP

If you've ever wondered about what a table saw can really do, look no further. Introducing the new JET 10" DELUXE XACTA SAW. The Quick-release riving knife and integrated arbor lock keep the operator safe and more efficient. The DELUXE XACTA SAW offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table give you even more cast iron to work on. A built-in 12.5" x 18" x 4 " storage drawer sealed from the cabinet keeps your necessities within arm's reach, also includes an on-board fence and miter gauge storage.

Details:

• EXCLUSIVE 50" Commercial XACTA Fence II with T-square design
• Quick release riving knife greatly reduces binding/kickback risk
• Push button arbor lock (patent pending) for rapid blade change
• Shrouded Blade increases dust collection efficiency
• Standard 11" left and right cast iron extension wings provides the largest table surface in its class
• Poly-V drive belt system delivers efficient, quiet operation
• Rail-mounted magnetic switch is easy to reach and provides overload protection
• Enclosed cabinet with built-in sealed storage drawer
• Hinged motor cover on cabinet gives quick access to the motor and belts
• Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
• Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
• Built-in 4" port for dust collection
• Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
• Left tilt, Wide stance heavy-duty trunnion for stability and smooth blade positioning
• Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
• Arbor wrench
• Powder coated paint for a long-lasting, chip-resistant finish

Specifications:

• Model #: JTAS-10XL50-1DX
• Brand: Jet
• Warranty: 5 Year
• Blade Diameter (in.): 10"
• Arbor Diameter (in.): 5/8"
• Arbor Speed (RPM): 4300
• Maximum Depth of Cut (in.): 3"
• Maximum Depth of Cut at 45 Degrees (in.): 2-1/8"
• Maximum Rip Right of Blade (in.): 50"
• Maximum Rip Left of Blade (in.): 13"
• Table in Front of Saw Blade at Maximum Depth of Cut (in.): 10"
• Maximum Width of Dado (in.): 13/16"
• Maximum Diameter of Dado (in.): 8"
• Table Height (in.): 34"
• Table Size with Standard Extension (L x W/in.): 29" x 42"
• Table Size without Extension (L x W/in.): 29" x 20"
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 350
• Motor Amps: 14.5
• Maximum Cross Cut (in.): 21"
• Miter Gauge Type: Deluxe
• Table Size without Wings (L x W/in.): 29"x 20"
• Table Type: Cast Iron
• Motor HP: 3HP
