Simply Technologies PERFORMANCE 8 CNC
- SKU:
- STG1000
- MPN:
- PERF8
- Shipping:
- $599.00 (Additional Shipping Charge, Details in Description)
Description

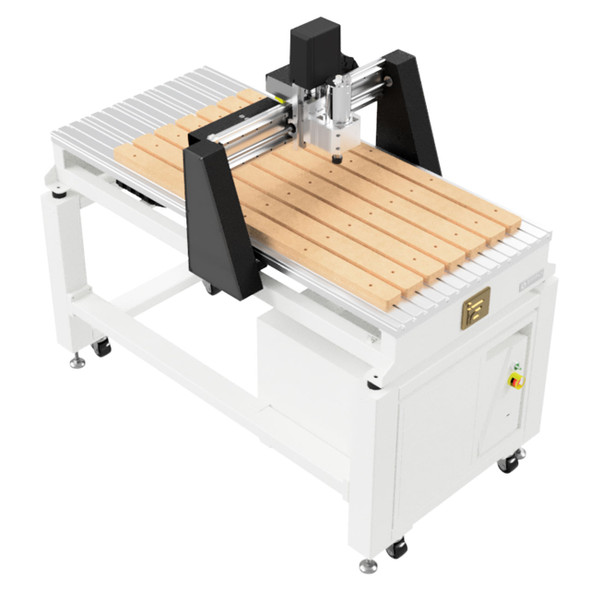

Simply Technologies Performance 8
3HP CNC 24 In. X 48 In.
The Performance Series CNC machines offer industrial-grade precision with 4-axis capability, a powerful 3HP electro-spindle, and integrated liquid cooling. Designed for professionals and small manufacturers, these machines feature precision ball screws, prismatic guides, and a robust steel frame for unmatched accuracy. With an iCNC Controller featuring a 15.6” touch screen, real-time toolpath visualization, and remote operation via Android devices, the Performance Series ensures ease of use and efficiency. Available in four available footprint options (24” x 36”, 24” x 48”, 48″ x 24″, 48″ x 48″) and optional Auto Tool Changer, they are prewired for a rotary kit, delivering maximum versatility in a compact, high-performance design.
The Performance Series CNC machines are engineered for precision, power, and versatility, making them the ideal choice for small manufacturers, professional woodworkers, and advanced hobbyists. Featuring 4-axis capability and rotary machining, this series is designed to handle complex, high-precision cutting applications with ease.
Each Performance Series machine is built on a rigid, all-welded steel frame and equipped with precision ball screws, prismatic guides, and a high-clearance gantry for smooth and accurate motion. The 3HP electro-spindle with integrated liquid cooling ensures consistent performance, reduced wear, and quiet operation, while the prewired rotary kit option allows for expanded 3D machining capabilities.
The Performance Series is powered by an iCNC Controller, featuring an advanced 15.6” touch screen interface, real-time visual toolpath display, and remote machine operation from any Android device, enhancing user experience and efficiency.
With four available footprint options (24” x 36”, 24” x 48”, 48″ x 24″, 48″ x 48″) and optional Auto Tool Changer, the Performance Series CNC machines provide the ideal balance of size and power, making them perfect for demanding projects requiring superior accuracy and reliability. The integrated MDF spoil board can be milled flat, ensuring a true perpendicular cutting surface, essential for precision work.
For those seeking industrial performance in a compact format, the Performance Series CNC is the ultimate solution.
Performance Series
| Specification | Performance 6 | Performance 8 | Performance 16 | Performance 16ATC |
|---|---|---|---|---|
| X Axis Travel | 24″ (610mm) | 24″ (610mm) | 48″ (1220mm) | 48″ (1220mm) |
| Y Axis Travel | 35.82″ (910mm) | 47.63″ (1210mm) | 48″ (1220mm) | 48″ (1220mm) |
| Z Axis Travel | 5.9″ (150mm) | 5.9″ (150mm) | 5.9″ (150mm) | 5.9″ (150mm) |
| Table Work Area | 24″ x 36″ | 24″ x 48″ | 48″ x 48″ | 48″ x 48″ |
| Spindle Type | 3HP Water Cooled | 3HP Water Cooled | 3HP Water Cooled | 3HP Water Cooled |
| Spindle Configuration | ER20 (1/4″ & 1/2″) | ER20 (1/4″ & 1/2″) | ER20 (1/4″ & 1/2″) | ISO20 ATC (1/4″ & 1/2″) |
| Controller | iCNC | iCNC | iCNC | iCNC |
| On-Board Memory | Yes | Yes | Yes | Yes |
| Rapid Feed Rate | 300ipm (5m/min) | 300ipm (5m/min) | 300ipm (5m/min) | 300ipm (5m/min) |
| Tool Touch-Off | Included | Included | Included | Included |
| Onboard Cooling | Included | Included | Included | Included |
| Machine Base | Welded Steel | Welded Steel | Welded Steel | Welded Steel |
| Rotary Axis | Yes | Yes | Yes | Yes |
| Resolution | ± 0.00393″ (0.10mm) | ± 0.00393″ (0.10mm) | +/- .000197″ (0.05mm) | +/- .000197″ (0.05mm) |
| Precision Linear Guides | X / Y / Z | X / Y / Z | X / Y / Z | X / Y / Z |
| Precision Ball Screw Transmission | X / Y / Z | X / Y / Z | X / Y / Z | X / Y / Z |
| Power Requirements | 220V, 50-60Hz, 10A, 1-Phase | 220V, 50-60Hz, 10A, 1-Phase | 220V, 50-60Hz, 10A, 1-Phase | 220V, 50-60Hz, 10A, 1-Phase |
| Working Table | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion |
| Gantry Bridge | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion | High Rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum Alloy Gravity Cast | Aluminum Alloy Gravity Cast | Aluminum Alloy Gravity Cast | Aluminum Alloy Gravity Cast |
| Max Gantry Clearance | 6.5″ (165.1mm) | 6.5″ (165.1mm) | 6.5″ (165.1mm) | 6.5″ (165.1mm) |
| Clearance Above Spoil Board | 5.5″ (139.7mm) | 5.5″ (139.7mm) | 5.5″ (139.7mm) | 5.5″ (139.7mm) |
| Machine Dimensions | 51.18″ L x 37.36″ W x 30.27″ H | 62.99″ L x 37.36″ W x 30.27″ H | ||
| Shipping Dimensions | ||||
| Machine Weight | ||||
| Shipping Weight |
