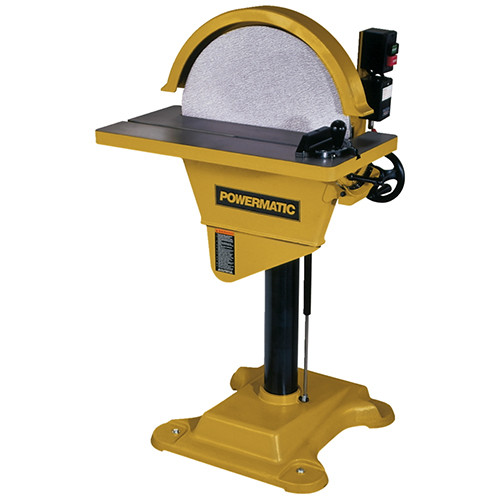

Powermatic DS-20 20" Disc Sander

Powermatic DS-20 20" Disc Sander

The DS20 20" Disc Sander is perfect for both professional and serious home woodworking shops. It features direct drive from the motor to the disc, ensuring maximum efficiency, and includes a hand-activated brake for quick stopping of the disc. The DS20 sander boasts an extra-large sanding surface, an adjustable tilting work table, and a robust cast-iron base. Additionally, the swing-away guard makes changing abrasive discs quick and easy.

Details:

• Forward/reverse switch
• Direct drive from motor to disc for maximum efficiency
• Tilting table allows bevel sanding
• Miter gauge for angle sanding
• 20" sanding disc for larger workpieces
• 4" port for connection to any dust collection system

Specifications:

• Model #: DS20
• Brand: Powermatic
• Warranty: 5 Year
• Disc Diameter (in.): 20"
• Disc Speed (RPM): 1720
• Disc Table Size (in.): 27-1/2" x 10-1/2"
• Disc Table Tilt (deg.): 30 up, 45 down
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 600
• Motor HP: 3HP
• Motor Phase: 3Ph
• Motor Voltage: 230/460V
