Description

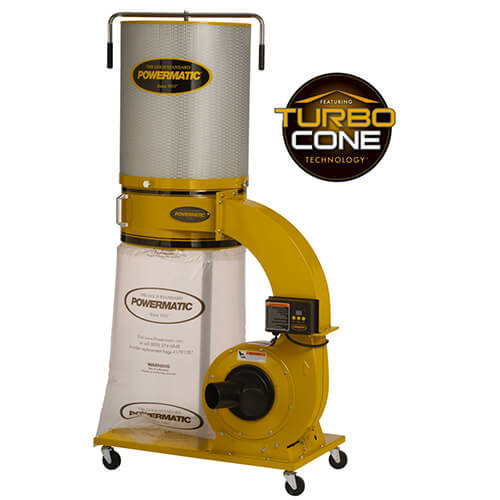

Powermatic PM1300TX-CK w/Canister
The PM1300TX Dust Collector is equipped with the innovative TurboCone™, which enhances chip separation to prevent filter clogging and improves the collector bag's packing efficiency. Its canister filter provides a larger filtering surface area than standard bags and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor enables remote control operation. The all-metal duct enhances rigidity and airflow. The large-capacity clear collector bags reduce downtime for bag changes. Additionally, four swivel casters and conveniently located handles ensure easy mobility.
Features
- TurboCone improves chip separation and collector bag packing efficiency
- The cone eliminates premature filter clogging for sustained performance
- A remote-controlled digital timer can be programmed for up to 99 minutes
- Canister filter offers over six times the filtering surface area of standard bags
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- 1-3/4HP motor offers plenty of power for effective air movement
- The collection bag uses a snap ring for rapid installation and removal
- A 10-cubic-foot capacity collection bag reduces the number of bag changes. Four swivel casters for easy maneuverability
Specifications
| Air Flow @ 6" (CFM): | 1,064 |
| Number of Air Inlets: | 1(6") or 2(4") |
| Efficiency (Micron): | 2 |
| Static pressure (WC): | 11.31 |
| Sound rating (DB): | 75-90 |
| Bag diameter: | 20" |
| Collection Bag capacity (Cu. Ft.): | 10 |
| Collection Bag length: | 30" |
| Filter Bag/Canister length: | 26" |
| Impeller diameter: | 12" |
| Impeller Fins: | 6 |
| Impeller material: | Steel |
| 1-Hose connection diameter: | 6" |
| 2-Hoses connection diameter | 4" |
| Motor power (HP): | 1-3/4 |
| Motor Phase: | 1 |
| Motor voltage (V.): | 115/230 |
| Prewired voltage (V.): | 115 |
| Motor current (Amps): | 15/7.5 |
| Recommended circuit size (Amps.): | 20/15 |
