Description

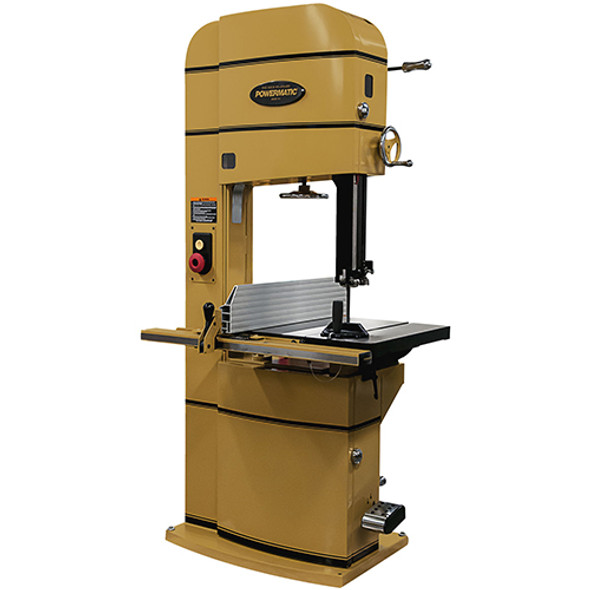

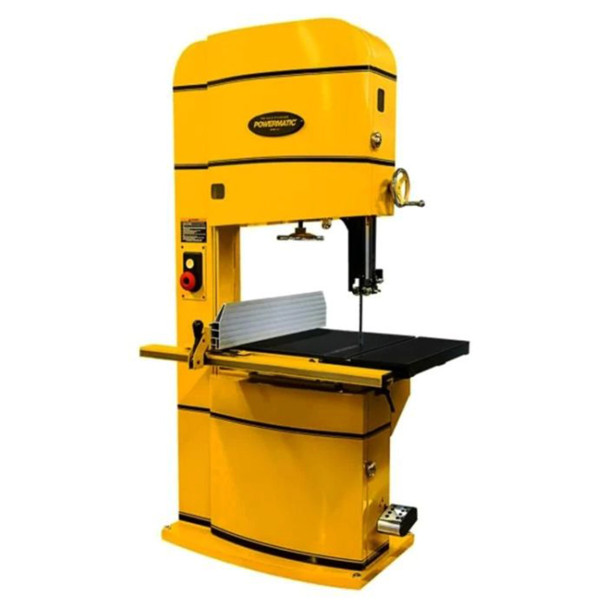

PM2415BT, 24-Inch Woodworking Bandsaw with ArmorGlide, 5 HP, 1Ph 230V
This bandsaw, now featuring our ArmorGlide Technology which is low-friction and rust-resistant, includes the legendary quality, precision, and attention to detail that has been helping woodworkers expand their ambition for more than 100 years.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust-resistant, requires less maintenance, and gives you more control
- The miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade tension release with an electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Exclusive Powermatic T-square style Accu-Fence® maximizes accuracy and safety
- Heavy-duty upper wheel support and tracking mechanism for smooth operation
- High-end blade guides with toolless adjustment provide stability, increasing cut accuracy
- Oversized side plate can be used in the horizontal or vertical position
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Spacious, heavy-duty cast iron table with more room in the front of the blade
- Sturdy cast iron table and trunnion assembly offers maximum rigidity for large workpieces
Specifications
| Stock Number | PM1-1791259BT |
| Blade Length (In.) | 183 |
| Blade Speed (SFPM) | 2500/4800 |
| Cutting Capacity Height (In.) | 15 |
| Cutting Capacity Width (In.) | 24.0000 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Minimum Saw Blade Width (In.) | 1/4 |
| Model Number | PM2415BT |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 30 |
| Style (Type) | Floor |
| Table Height from Floor (In.) | 35 |
| Table T-Slot (In.) | 3/4 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
