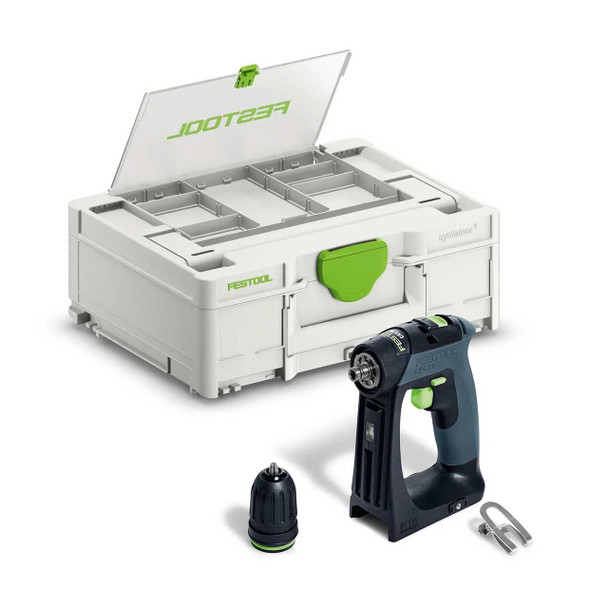

CXS 18-Basic Cordless Drill

CXS 18-Basic Cordless Drill

The new champion of compact drills. With 18 V power.

Light, compact and impressively powerful - the popular compact drill design with more torque and power now on the 18-volt platform. The 18-volt CXS/TXS 18 compact drill-driver is both small and power for most everyday applications – perfect also for narrow spaces or corners. Fast tool change with the tool-free FastFix interface and the CENTROTEC system. Practical and useful details like the magnetic onboard bit holder, the adjustable LED light and the lid compartment Systainer³ make the CXS 18 a compact powerhouse you will reach for time and time again.

• Impressive ergonomics and low weight for easy drilling and fastening
• The compact, ergonomic shape makes work easier, even in tight spaces
• The ergonomic C-shape of the handle puts the user more in line with the bit for more precise work and less fatigue
• Quick, tool-free conversion to drilling, driving, angular drilling and angular driving thanks to the FastFix interface
• The depth stops and eccentric adapter also enable depth-limited driving close to edges
• Numerous attachments for a variety of applications. All attachments of the current 18 V drills are compatible with the CXS 18 and TXS 18
• Longer runtimes per charge than conventional brushed motors and with longer life thanks to brushless EC-TEC motor
• Integrated magnetic bit holder
• The work area is optimally lit by LED lighting that can be activated by the trigger or turned on or off manually (in conjunction with a Bluetooth® battery pack, can also be controlled via the Festool App)
• For left-handed people, the Festool App can be used to reverse the right-hand/left-hand selector switch such that the switch position is aligned with your preferences, changing the rotation settings of the drill (only in combination with a Bluetooth® battery pack)
• Easy to store, easy to carry. The CXS 18 comes in a Systainer³ and can be seamlessly integrated into the Systainer Systems van racking equipment for easy transportation from the shop to the site
• 13 torque settings and torque switch-off for precise fastening
• Durable, removable belt clip that can be mounted on either side

Main applications

• Furniture, cabinet and kitchen assembly
• Installation of skirt boards, boxes, outlets, curtains
• Interior finishing
• Attaching of façade panelling and patio deck construction
• Light and medium drilling and screwdriving in wood, metal and plastic
• Drive screws into wood up to 1/4" x 9-7/16" (6x240 mm)
• Drilling in wood up to 1-3/8" (35 mm) with Forstner drill bits

• Specifications
• Battery voltage
• 18 V
• Gears
• 2
• Idling speed, 1st gear/2nd gear
• 0 - 470/0 - 1600 RPM
• Drive type
• Battery
• Transport weight incl. accessories
• 31 kg
• Drilling diameter, wood/steel
• 1-3/8” (35 mm)/3/8” (10 mm)
• Weight
• 54 lbs (0.7 kg)
• Chuck range
• 1/32” – 3/8” (1 – 10 mm)
• Torque setting 1st gear
• 7 in-lb (1.1 Nm) - 70.8 in-lb (8 Nm)
• torque, wood/steel
• 7 in-lb (22 Nm)/354.0 in-lb (40 Nm)
• Torque setting 2nd gear
• 5 in-lb (0.4 Nm) - 20.4 in-lb (2.3 Nm)
