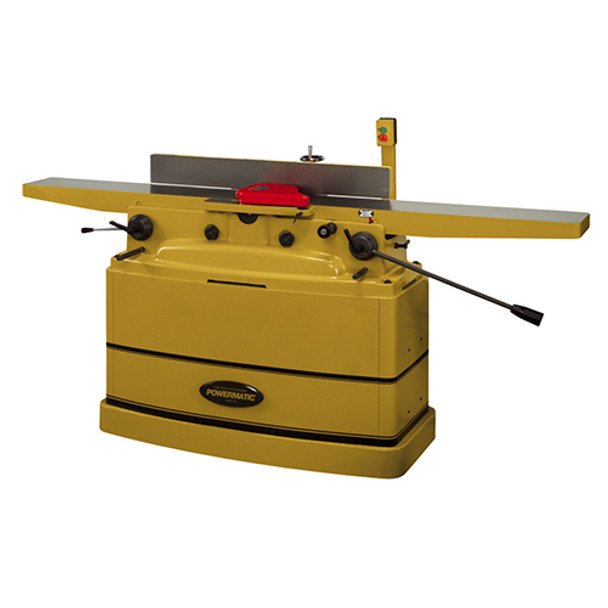

PJ-882HH 8" 2HP 1PH Parallelogram Jointer

PJ-882HH 8" 2HP 1PH Parallelogram Jointer

The 8" Parallelogram Jointer delivers exceptional performance and value, packed with advanced features. Its helical cutterhead, featuring 54 four-sided knife inserts, ensures a superior finish and operates more quietly than conventional designs. Once installed, the inserts require no adjustment, providing added convenience.

The jointer's extra-long 82" bed offers excellent support for larger workpieces. It features an innovative single-handwheel system for easy fence adjustment, with positive stops at +/- 45° and 90°. A non-marring insert on the fence protects the table surface during adjustments, preventing scratches.

Designed with a parallelogram system, the table stays close to the cutterhead, improving finish quality and enabling quick depth adjustments. This design also ensures the table remains perfectly parallel, even after years of heavy use.

Powered by a robust 2HP motor housed in a heavy-duty steel stand, this machine provides the power and stability needed for demanding tasks. While the helical cutterhead offers significant advantages in finish quality and noise reduction, this jointer is not intended for rabbeting. For projects requiring rabbeting, consider the straight knife version of this model.

Details:

• Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
• Extra-long 82" table for expanded work support
• Parallelogram design helps maintain table parallelism and eases table raising and lowering
• Handwheel with worm gear system for precise fence tilting (Patented)
• 1/8" depth of cut limiter for fast table positioning
• High-mount switch for operator convenience
• No-mar fence insert protects the table

Specifications:

• Model #: PJ-882HH
• Brand: Powermatic
• Warranty: 5 Year
• Cutting Capacity (W x D/in.): 8" x 1/2"
• Cutterhead Speed (RPM): 7000
• Cutterhead Diameter (in.): 3-1/16"
• Number of Knives (Helical/Standard): 54 four-sided inserts
• Table Height (in.): 31-5/16"
• Table Size (L x W/in.): 83" x 8"
• Infeed Table Length (in.): 44"
• Outfeed Table Length (in.): 38"
• Fence Size (L x H/in.): 44-3/4" x 38-3/16"
• Fence Tilts (deg.): 45°
• Fence Positive Stops (deg.): +/-45°, 90°
• Dust Port Diameter (OD/in.): 4"
• Dust Collection Minimum CFM Required: 800
• Motor HP: 2HP
• Motor Phase: 1PH
• Motor Voltage: 230V
