Product Description

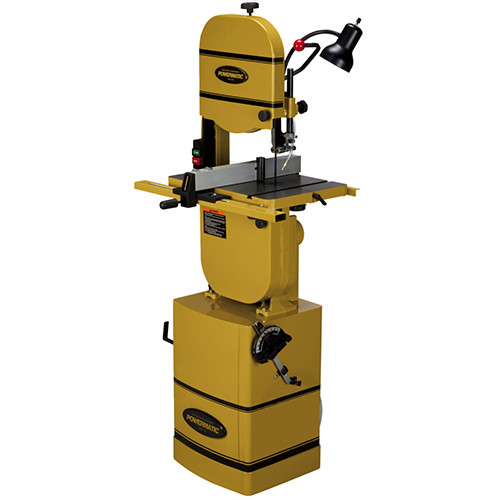

The PWBS-14CS Bandsaw has an extra large, two-piece cast iron table. It consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". A balanced, nine-spoke cast iron wheel makes for smooth blade travel, and a Carter quick tension release lever makes blade changing easy. A micro-adjustable dual bearing blade guide system is featured above and below the table, as well as a work lamp and chip blower. A Poly-V belt maximizes power transmission while minimizing noise and vibration. It has full 6" under guide capacity with 13-1/2" frame to blade clearance. The aluminum rip fence comes with a resaw attachment.
Details:
- CARTER quick tension lever speeds blade changes, and the de-tension setting extends blade life during non-use
- Extra-large, two piece cast iron table consists of a 15" x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20"
- Chip blower ensures a clean, visible cut line
- Durable micro-adjustable dual bearing blade guide system above and below the table for close blade control with less friction
- Exclusive design, quick-release precision T-square style rip fence with 4" resaw attachment
- Precision balanced, nine spoke cast iron wheels reduce vibration
- Easy to read tensioning gauge settings indicated in blade width increments
- Full 6" under guide capacity with 13-1/2" width capacity
- 60 watt adjustable lamp built into the body provides direct light on blade and work piece while cutting (bulb not included)
- Rigid one-piece welded stand requires no assembly
Standard Equipment:
- CARTER quick tension release
- Adjustable miter gauge
- T-style rip fence with resaw assembly
- 1/4" bandsaw blade
- Gooseneck work lamp and chip blower
Specifications:
- Model #: PWBS-14CS
- Brand: Powermatic
- Warranty: 5 Year
- Cutting Capacity (W/in.): 13-1/2"
- Cutting Capacity (H/in.): 6"
- Minimum Saw Blade (W/in.): 1/8"
- Maximum Saw Blade (W/in.): 3/4"
- Blade Speed (SFPM): 3000
- Blade Length (in.): 93-1/2"
- Table Dimension (LxW/in.): 15" x 15"
- Table Dimension with Extension (LxW/in.): 15" x 20-1/2"
- Table Tilt (deg.): 45 R, 10 L
- Table Height From Floor (in.): 44"
- Dust Port Diameter (OD/in.): 4"
- Stand Type: Closed
- Thickness Capacity (max./in.): 6"
- Bandsaw Size (in.): 93-1/2" Length
- Wheel Diameter (in.): 14"
- Motor Voltage: 115/230V
