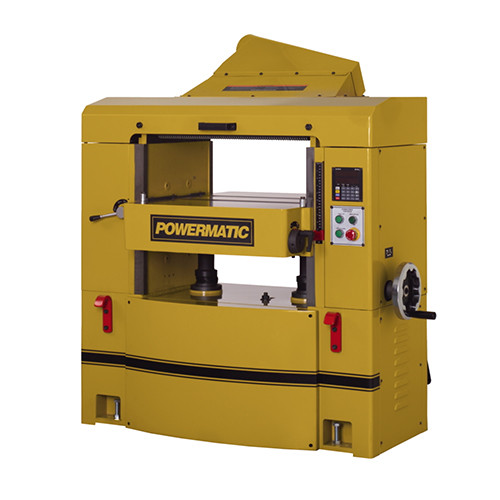

Powermatic WP2510 25" Planer

Powermatic WP2510 25" Planer

The POWERMATIC® WP2510 Planer features a robust steel helical cutterhead equipped with four-sided carbide knife inserts that require no adjustments when changed. It is designed with a digital readout and a straightforward PC controller, making it quick and easy to set up the table heights. The frame is crafted from heavy cast iron and includes extra-wide side panels that provide rigid bed support, ensuring precise alignment.

The planer's segmented, serrated infeed roll is paired with segmented chip breakers and offers an independent yield of 1/4. Its automatically adjusting chain-drive gearbox powers the 3-inch-diameter infeed rollers, the solid pressure bar, and the dual outfeed rollers for accurate feeding of stock. The three-speed feed selector allows woodworkers to easily switch feed rates, providing flexibility during use.

The WP2510 Planer also boasts a large precision-ground table measuring 32-3/16" x 26", which includes two adjustable table rollers for smooth feeding of uneven stock. Additionally, the planer features a Quick-Set micro-adjustable lever that allows for easy height adjustments of the table rollers from 0 to 0.05 inches. The hood is equipped with a built-in 5-inch diameter dust chute for efficient dust collection.

Details:

• Solid steel helical insert head with four-sided carbide insert tooling, eliminates the need for adjustment after changing knives, and reduces sound levels
• Digital readout and simple PC controller make quick and easy table height setups
• Segmented serrated infeed roll with segmented chip breakers has 1/4" independent yield, for planing multiple height stock
• Massive gearbox maintains positive feed by using a large chain drive with automatic chain tensioners to power infeed and outfeed rollers
• 3" diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long life
• Quick-Set micro-adjustable lever easily raises and lowers table rollers from 0" to 0.050" at a touch
• Frame machined from heavy cast iron and extra-wide side panels with gibs, offers rigid bed support and accurate alignment
• Solid pressure bar has a wide foot for long wear and can be adjusted on both ends for precise feeding
• 3 speed feed selector allows you to quickly change feed rates
• Large 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stock
• Dust hood features a built-in 5" dust chute for efficient dust collection

Standard Equipment:

• Helical head with four-sided inserts
• Dust hood with a 5" diameter dust port
• Segmented infeed rollers
• Segmented chip breakers
• Tool kit with pneumatic screwdriver for removing the cutterhead insert blades

Specifications:

• Part Number: 1791303
• Warranty: 1 Year
• Maximum Planing: 25"
• Maximum Planing Thickness: 9"
• Maximum Full Width Depth of Cut: 1/8"
• Maximum Depth of Cut: 1/4"
• Minimum Planing Length: 10"
• Cutterhead Diameter: 3-3/8"
• Cutterhead Speed: 5000 RPM
• Cuts Per Minute: 30000
• Feed Rate: 20, 25, and 30 FPM
• Outfeed Roller Diameter: 3"
• Number of Knives: 174 Four-sided inserts
• Table Size: 32-3/16" x 26"
• Dust Port Diameter: 5"
• Dust Collection Minimum CFM Required: 600 cu.ft/min
• Bed Rollers Adjustable from Front: 0" to 0.05"
• Readout Scale: inch/ metric
• Segmented Infeed Roller Diameter: 3"
• Table Height Adjust Manual: 1 Turn = 1/32"
• Table Support: 2 column
• Tool Supplied: tool kit
• Column Diameter: 2-1/2"
• Maximum Height of Rollers Parallel to Tabletop: 0.05"
• Rollers: 1 infeed, 2 outfeed
• Motor Power: 15 HP
• Motor Phase: 3 Ph
• Motor Voltage: 230 V
• Prewired: 230 V
• Model Number: WP2510
• Brand: Powermatic
• Overall Dimensions: 52 x 36 x 59
• Height: 59 inches
• Width: 36 inches
• Length: 52 inches
• Net Weight: 1725 pounds
