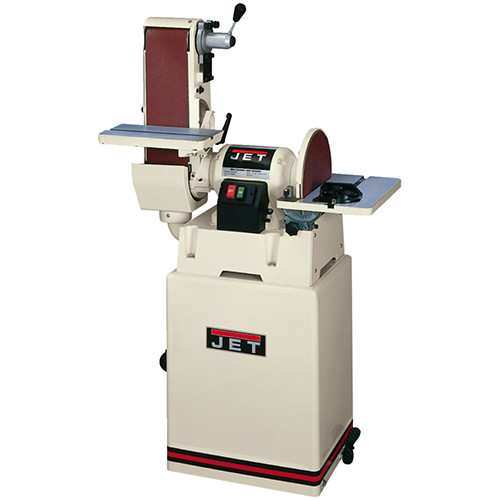

JET 6X48 / 12" Closed Std Sander JSG-6CS

• Two precision-ground cast iron tables have positive stops at 90 and 45 for sanding flat pieces or mitered angles; allows belt sander to be used vertically, horizontally or anywhere in-between
• EXCLUSIVE dual thumbscrew belt tracking adjustment locks to keep belt on track during use
• Graphite covered steel platen runs cooler increasing machine and belt life
• Specially designed belt guard allows full use of the 6" belt width and length
• Drive drum is rubber-coated for a better grip on the sanding belt resulting in less slippage
• Tracking adjustment knob with quick-lock handle keeps belt on track during use
• Quick-release belt tension lever makes belt changes fast and easy
• Quick-lock dust cover allows fast disc changes
• Single 4" dust port on the back of the base collects dust effectively from both the belt and disc
• Powerful 1-1/2HP motor easily handles the toughest sanding operations
• Built-in handles for easier portability
• One-piece formed steel heavy-duty closed stand with built-in casters provides solid support and portability

Specifications:

• Model #: JSG-6CS
• Brand: Jet
• Warranty: 5 Year
• Style: Closed Stand
• Belt Size (L x W/in.): 48" x 6"
• Disc Diameter (in.): 12"
• Belt Speed (SFPM): 2500
• Disc Speed (RPM): 1725
• Belt Table Tilt (deg.): 20 up, 45 down
• Disc Table Size (L x W/in.): 16-1/2" x 10"
• Disc Table Tilt (deg.): 25 up, 45 down
• Dust Port Diameter (OD/in.): 4"
• Motor HP: 1-1/2HP
• Motor Phase: 1Ph
