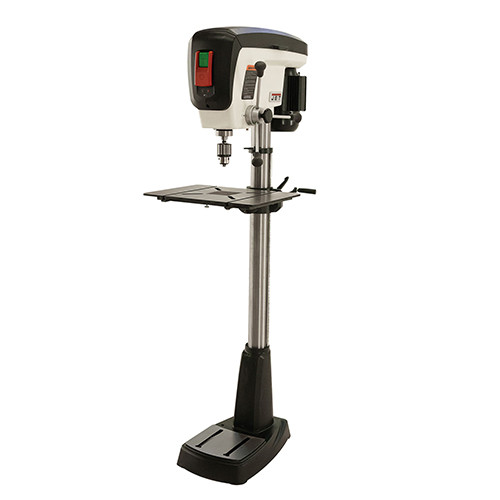

Jet 17" Drill Press 3/4HP / JDP-17

Introducing the JET JDP-17, 17" Drill Press. From a full 5" of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.

Features:

• Spindle travels a full 5" with one revolution of the handle
• Large 14" x 19" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
• One-handed belt tensioning allows for rapid speed changes
• Power switch features a safety key and large, paddle-style off button
• Integrated depth stop makes repetitive drilling quick and easy
• Xacta-X laser system easily identifies the drill center
• Long-lasting, built-in LED work light reduces shadows
• Table edge lip designed to make clamping easy
• Replaceable MDF table insert
• Large cast iron base provides stability
• Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
• CSA Certified

Specifications:

• Style (type): Floorstanding model
• Swing: 16-7/8"
• Spindle travel: 5"
• Number of spindle speeds: 16
• Spindle speed range (RPM): 210 - 3500
• Spindle distance to table (Max.): 30"
• Table size (L x W): 14" x 19"
• Table tilt: 90° left and right
• Chuck distance to base: 42-7/8"
• Chuck distance to table: 25-7/8"
• Chuck size: 5/8"
• Column diameter: 3-5/32"
• Base size: 20" x 12-5/8"
• Motor power (HP): 3/4"
• Motor phase (PH): 1"
• Motor amps: 9
• Recommended circuit size (Amps.): 15
• Weight: 187 lbs
