Axiom 4.2W Laser System / PRO V6 Only

Axiom 4.2W Laser System / PRO V6 Only

Engrave on wood, leather, acrylics, and many other materials.

Cut thin and soft woods like Balsa, Basswood, and many other types of materials like foam, paper, cloth and acrylics.

MAKE incredible objects for projects or production. Your creations are only limited by your imagination!

Built by J Tech Photonics specifically for ProV6 this is the strongest laser accessory available in the market.

The Axiom CNC laser by J Tech Photonics raises the bar in CNC accessory lasers. Precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, ESD protection, current limiting, and the list goes on…. But we have safety in mind as well! The US Federal Government has a list of things that are required for operating these high power class 4 lasers. They might seem trivial, but they could save your eyesight! Here is a rundown of the safety features which will protect yourself and others:

Key Switch – A key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled. This feature is good if you have curious children or have your laser in a shared area and want to limit use. Just take the key out and hide it!

Safety Interlocks – This feature turns off the laser if the laser is tilted or removed from the machine. Additionally the machines E Stop button will quickly turn off the machine and laser if needed.

Power Fault Protection – In the event of a power failure, your laser will be disabled, preventing the beam to illuminate as the power is restored. Simply press the reset button and you are back in action!

Emission Indicator –  The LED on the front to lets you know when your laser is on.

This kit is specific to the Axiom Precision line of CNC machines. This has everything you need to get your laser up and running on your Axiom machine.

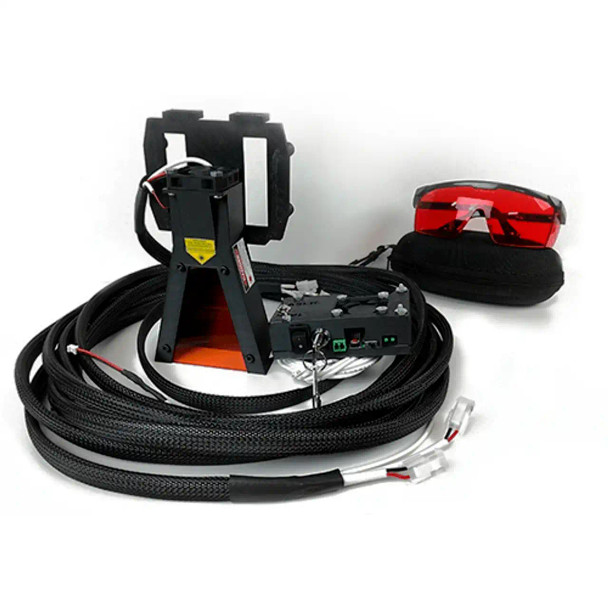

This kit includes:

• 4.2W 445nm Laser in Custom Protective Housing and Mount
  • 2.5 Amp Adjustable Safety Compliant Laser Diode Driver with Pre-Wired Connections
  • Power Adapter 12V 2.5A, US Style Plug
  • Laser Safety Goggles for 445nm Lasers
  • Laser Extension Cables

The laser unit does not allow for software variability of output intensity. Therefore greyscale is not supported.

Laser Overview
This is the strongest available laser offered on the market. We set the current to the maximum level recommended by the manufacturer to achieve a high level of power while still allowing for maximum lifetime.
