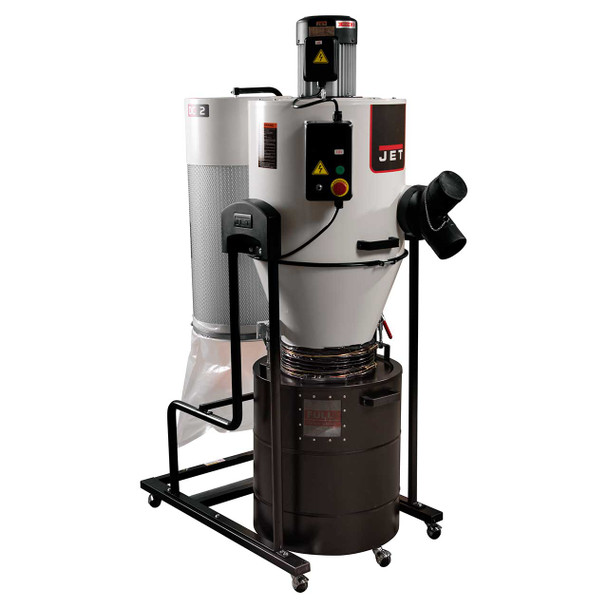

Jet JCDC-2 Cyclone Dust Collector
Keep your workshop clean with the JET Cyclone Dust Collector. It is built for efficiency and strong dust collection. This dust collector has a direct-mount filter to improve airflow, a large 30-gallon bin for easy debris removal, and a radio frequency remote control with timer settings for hands-free use. Its two-stage cyclone separation and fine particle filtration down to 1 micron help keep your workspace clean and your equipment running well. Choose the JET Cyclone Dust Collector for reliable, professional performance and convenience in your shop.
Features
- A direct-mounted filter improves airflow by removing the inefficiencies caused by rigid hoses and bends.
- The double paddle manual cleaning system lets you clean the pleated filter quickly.
- The pleated filter material captures fine dust down to 1 micron and even smaller particles.
- A 30-gallon drum, quick-release levers, and independent casters make it easy to empty heavy debris quickly.
- The system keeps suction steady by pulling heavy debris into the collection drum before it reaches the filter.
- The included radio frequency remote control works from as far as 50 feet away.
- You can set the remote timer to run the system for 2, 4, 6, or 8 hours before it shuts off automatically.
- Swivel casters make it easy to move the unit around your shop.
- The cyclone’s two-stage separation provides more working CFM than similar single-stage units with the same horsepower.
Specifications
|
1-Hose Connection Diameter (In.) |
6 |
|
2-Hoses Connection Diameter (In.) |
4 |
|
Canister Filter Length (In.) |
22-5/8 |
|
Collection Drum Capacity (gal.) |
30 |
|
Filter Efficiency (Micron) |
1 |
|
Footprint (L x W/In.) |
50-5/8 x 25-7/8 |
|
Impeller Material |
Steel |
|
Max. Static Pressure (Wc.) |
10.079 |
|
MERV Value |
13 |
|
Model Number |
JCDC-2 |
|
Motor Power (HP) |
2 |
|
Motor Voltage (V.) |
230 |
|
Prewired Voltage (V.) |
230 |
|
Prop 65 |
Cancer and Reproductive Harm |
|
Static Pressure Loss (EU Method) (Wc.) |
3.780 |
|
Static Pressure Loss (US Method) (Wc.) |
2.520 |
|
Warranty |
5 Year |
|
Gross Weight |
235.0 |
|
Net Weight |
207.0 |
