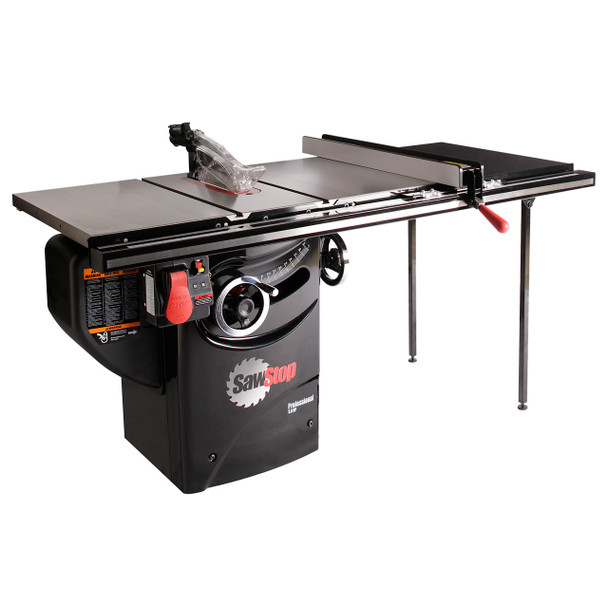

Sawstop Professional Cabinet Saw, 36" T-Glide Fence, 3HP, Single Phase
(No reviews yet)
Write a Review
- SKU:
- SP30236
- UPC:
- 857766003284
- MPN:
- PCS31230-TGP236
- Shipping:
- $325.00 (Fixed Shipping Cost)
On Sale
Description
The SawStop® 3HP Professional Cabinet Saw with 36" Professional T-Glide Fence System offers versatility and safety. It delivers the performance you need with the peace of mind only SawStop's patented safety system can provide.
Specifications
| Length | 69-1/8" |
| Width | 31-1/8" |
| Height | 34" |
| Weight | 426 lbs |
| Motor (60Hz TEFC): | 3 HP, 1 phase, 230v, 13 A |
| Cabinet Footprint: | 19 3/8″ W x 19 3/8″ D |
| Cast Iron Table: | 20″ W x 27″ D |
| Extension Wings: | 12" W x 27" D each |
| Extension Table: | 12" W x 27" D |
| Blade Diameter: | 10" |
| Blade Tilt: | Left |
| Max. Rip Right of Blade: | 36" (w/ 36" rails) |
| Dado Blade Diameter: | 8" |
| Dado Max. Width: | 13/16" |
| Arbor Diameter at Blade: | 5/8" |
| Miter Slots T-Shaped: | 3/4" at top, 1" at bottom, 3/8" deep |
| Dust Collection Port Diameter: | 4" |
- 69-1/8" W, 33" D, 34" H
- Unmatched fit and finish with a keen attention to detail
- SawStop Safety System stops on contact with skin
- 36" Professional T-Glide Fence System provides smooth operation, precision measurement and sure lockdown without deflection
- PCS compatibility
- 2 Year warranty
Saw includes: *Fence System assembly w/ Rails & Table *Dust Collection Blade Guard *Cast Iron Table & Wings *Riving Knife *Tool Free Zero Clearance Insert *Standard 10" Brake Cartridge *40 TPI Carbide Blade Accessories: SP80010 STANDARD BRAKE CARTRIDGE 10" SP80011 DADO BRAKE CARTRIDGE 8" SP60004 ZERO CLEARANCE INSERT 10" SP60005 ZERO CLEARANCE INSERT 8" SP90027 OVERARM DUST COLLECTION SP60006 30" OUT-FEED TABLE SP60002 INTEGRATED MOBILE BASE SP60009 INDUSTRIAL MOBILE BASE
