The 3" Multi Cutter - Master consists of 3 different length extensions which are individually fitted to your own 4-1/2" angle grinder having a 5/8"-11NC center shaft. It also features multi angled positions from 90_ to 180_. The circular (round) cutter will carve in any direction but discover new designs with any of the round, triangle and square cutters. You will be able to add all the 3" (round, triangle, square) and use the 4" square cutter. The 4" round and triangle cutters fit directly on your grinder.
Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you. They can be used in a myriad of general carving and texturing applications for all carvers and turners. Your versatility, with extended reach and angles, will allow you to greatly improve your productivity and creativity.
We highly recommended thumb controlled ON/OFF slide switch angle grinders. Manpa does not perform as well with paddle or kill switch grinders due to the fitment of the multi cutter.
This set includes 3 Extensions: 8", 10-1/2" and 14" (200mm, 270mm, 348mm) plus 2 Circular Cutters 1. 1 - MP21-3-8 3" Circular Cutter 8mm 2. 1 - MP21-4-8 4" Circular Cutter 8mm.
Important Note on Proper Attachment of any Multi Extension Carver to Your Angle Grinder
Included in every Belt Cutter and Multi Cutter are two adaptor rings with 42.50mm and 44mm diameter, that Manpa found fit all grinders listed under SPECIFICATION AND FEATURES. We also found that another size ring with 41.50mm, fits the KAT recommended FEIN angle grinder. THIS ADAPTOR RING IS INCLUDED! It may also fit other 4_" grinders with a 41.50mm flange.

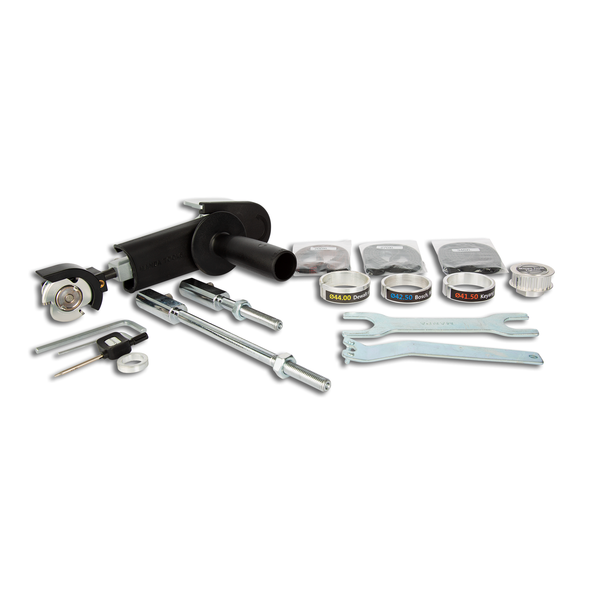

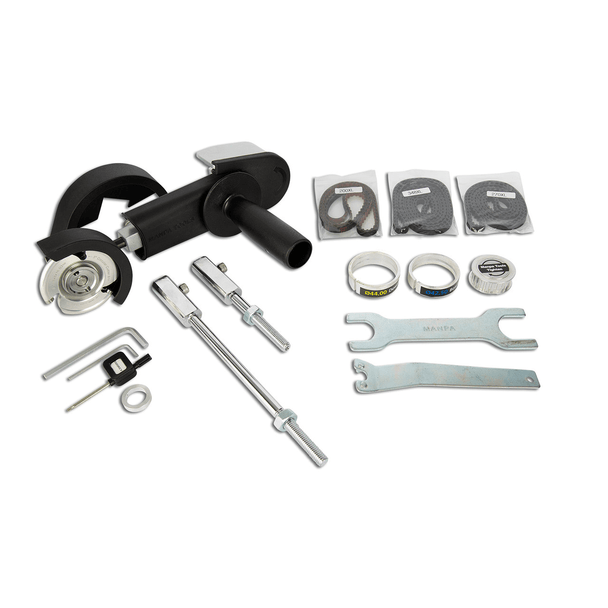

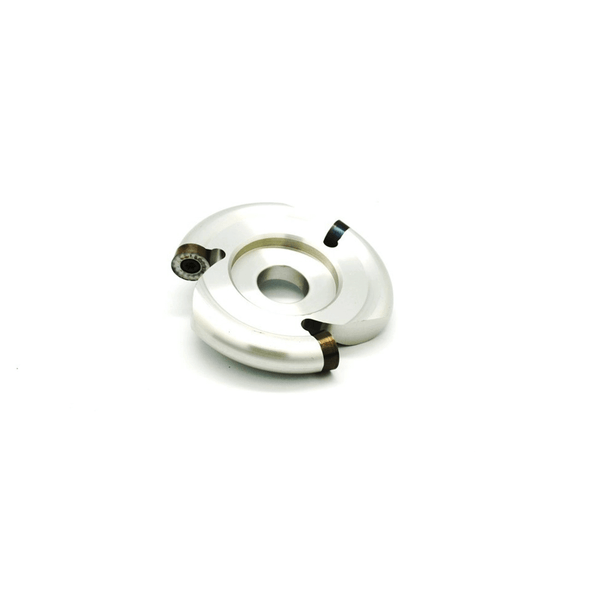

- Multi cutter Housing & 3" Circular Cutter 8mm
- Body & Safety Cover
- Wide Handle
- 4" Safety Cover
- Drive Gear
- Adapter Ring 42.50 & 44.00
- Torx Wrench & L Wrench
- Timing Belt 200, 270, 348 XL
- 4" Circular Cutter 8mm
- 2 Extension Tools (270, 348 mm)
Specifications & Features
- Model MP21-3-M Angle Grinder Is Not Included
- This is the most complete and largest Multi Extension Carver of the series
- It consists of 3 different length extensions which are individually fitted to your angle grinder
- This Multi Cutter only fits 4-1/2" (115mm) angle grinders with 5/8"-11NC spindle thread (center shaft) to primarily fit North American models
- Does not perform as well with paddle or kill switch grinders due to the fitment of the multi cutter
- While many users are familiar with using a standard 4-1/2" (115mm) angle grinder, with a myriad of cutting, carving and shaping accessories fitted to the grinder, this extends the carving reach up 14" (348mm) away from the head of the grinder
- It also features multi angled positions from 90° to 180°, depending on the grinder

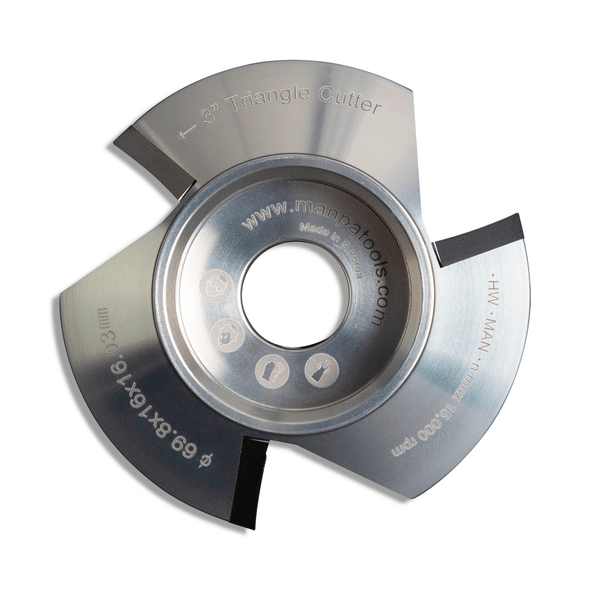

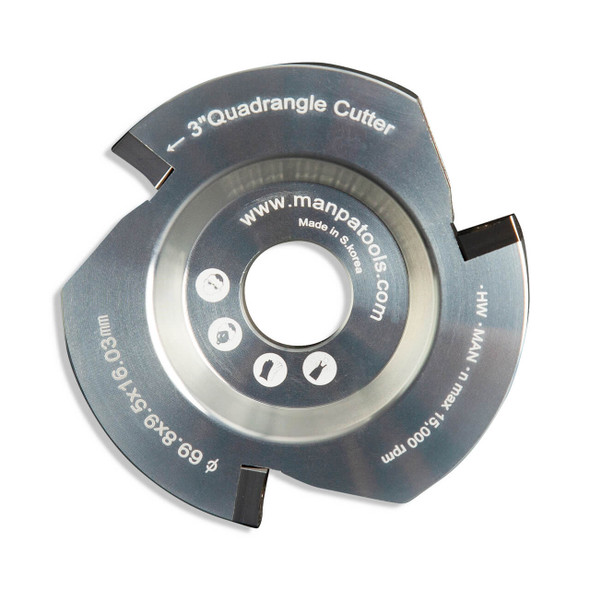

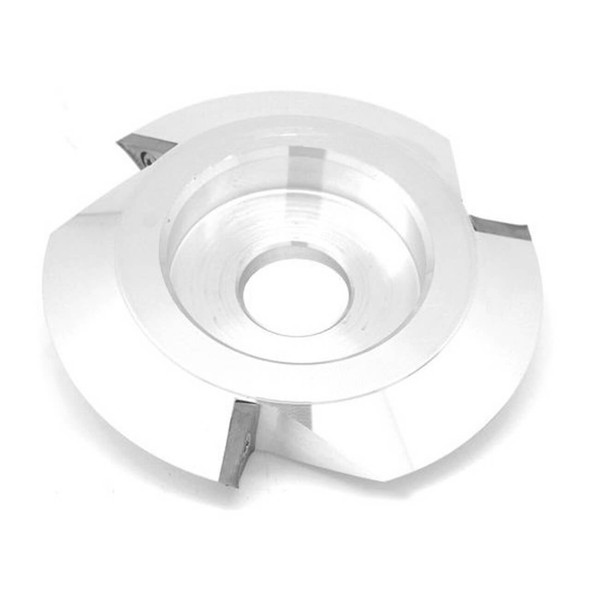

- Interchangeable using all 3" and 4" cutters, (round, triangle, square)
- Highly recommended for professional carvers and turners
- Your versatility, with extended reach and angles, will allow you to greatly improve your productivity and creativity
- Cuts incredibly fast, smooth and controlled, whether in pushing away or pulling toward you
- Can be used in a myriad of general carving applications
- Discover new designs with any of the round, triangle and square cutters
- This set includes 3 Extensions to your 4-1/2" (115mm) Angle Grinder: 8", 10-1/2" and 14" (200mm, 270mm, 348mm)
- Plus 2 Circular Cutters: 1. 1 - MP21-3-8 3" Circular Cutter 8mm, 2. 1 - MP21-4-8 4" Circular Cutter 8mm
- Popular North American Grinders (Thumb Controlled ON/OFF Switch Strongly Recommended)
- Bosch: 1375A, GWS8-45, GWS9-45, GWS18V-45
- Makita: GA4030K, GA4030, GA4530K, GA4530, GA4534, GA4530X, 9556NB, 9557NB, 9558PB, 9557PB, 9565PCV, GA4542C, XAG042Z, XAG09Z, XAG11Z, XAG16Z, XAG20Z, XAG17ZU, XAG21ZU
- DeWalt: DCG405B, DCG412B, DWE4011, DWE4012, DWE4120, DWE4120N
- Milwaukee: 2783-20(22,22HD), 2781-20(21,22,22HD), 2980-20(21-22), 2981-20(21,22)
- Hitachi: G12SE2
- Porter Cable: PC750AG
