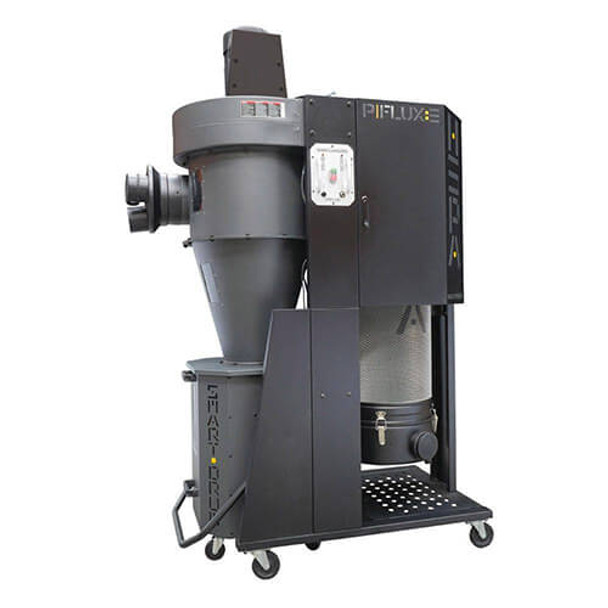

Peerless performance. Sporting standard black HEPA filtration the P|Flux series is filled with innovative details such as:
- LED shows when drum is full
- LED shows when filter needs cleaning
- Swing-away doors sports acoustic foam on the inside to lower noise level
When lifting the drum into position a connector on the back of drum automatically hooks up to a pipe in cyclone this way creating a low pressure in bottom of the drum, this is designed to hold down plastic bag to avoid it being sucked up into the cone during use, no other cyclone or dust system has such a smart system, it is a vast improvement over last generation.
If you chose to use the p|flux without a bag you can simple shut off the system using a valve offering you speed and flexibility.
- Motor HP: 3 HP
- Phase: 1
- Voltage: 220V
- Amps: 22 Amps
- Hertz: 60
- Plug: No
- RPM: 3450
- Switch type: Sunken Radio Frequency Remote switch with LED Full drum detection & LED HEPA dirty detection
- Hand held remote control: High Frequency
- Shop setting CFM*: 1624
- Inlet CFM: 2817
- Max static pressure (inches of water): 11.2"
- Impeller/Fan size: 15.5"
- Impeller material: Steel
- Impeller type: Radial Fin
- Balanced: ISO 1940
- Inlet diameters: 8" by 4" x 3 Ports
- Drum capacity: 46 gallon
- Octagon Drum: Low Pressure Suction
- Drum collection bag (Dia. x L): Plastic bag (∅610 x 950mmL)
- Canister filter type: HEPA
- Filtration efficiency: 0.4micron @ 99.2%
- MERV rating: 16+/Refer to tab 4
- Canister diameter: ∅400mm (15.75")
- Canister length: 900mm (35.43")
- Filter surface area: 9.5m²/109ft²
- Canister filter lower dust collection: Metal end cap with 4" hookup
- Base with perforated sheet across canister floor: Included
- Wheels: 4" Flat Caster
- US/CSA Approved: Yes
- Decibel reading: 76 d B(A) (@9.8ft)
- Machine weight: 159kgs/351Lbs
- Shipping weight: 190kgs/419Lbs
- Assembled dimensions: (L x W x H): 1178x690x2025mm
