Powermatic Lathe 4224B
- SKU:
- DS1794224K
- Shipping:
- $645.00 (Additional Shipping Charge, Details in Description)
On Sale
Description
4224B, 24" x 42" EVS Woodworking Lathe with Lamp Kit, 3 HP, 1Ph 220V
The Powermatic 4224B is the newest member of the industry-leading family of lathes. At over 900 pounds, the 4224B is the largest, heaviest, and most capable lathe we've ever built. It expands the limits of creative possibility and takes your passion to a whole new level. With newly designed, top-of-the-class features, the 4224B pushes the limits of design, innovation, and durability.
Features:
- Sliding headstock with electronic variable speed and digital RPM readout for accurate speed adjustments
- Spindle lock and built-in spindle indexing on the headstock for drilling hole patterns, routing flutes, and other equally spaced features
- The vacuum system provides a quick method of chucking bowl blanks
- 15-amp quad receptacle for easy reach of powered accessories
- Two 100W task lamps provide ideal lighting
- Air nozzle with quick connect for clearing dust/chips
- A set of dead centers that hold a spindle for visual comparison
- Laser etched quill is self-ejecting
- Two-position mount for the optional bed extension
Specifications:
| Stock Number | 1794224K |
|---|---|
| Bed Construction | Cast Iron |
| Centerline of Spindle to Floor (In.) | 44 |
| Distance Between Centers (In.) | 42 |
| Input Power | 220V 1-Phase |
| Model Number | 4224B |
| Motor Amps | 10 |
| Motor (HP) | 3 HP, 220V, 3Ph |
| Motor Phase | 3 |
| Motor Power (HP) | 3 |
| Motor Voltage (V) | 220 |
| Overall Dimensions (L x W x H) (In.) | 89 x 28 x 65 |
| Prop 65 | Cancer and Reproductive Harm |
| Recommended Circuit Size (Amps) | 30 |
| Shipping Dimensions (L x W x H) (In.) | 68 x 27 x 31.5 |
| Swing Over Bed (In.) | 24 |
| Warranty | 5 Year |
| Gross Weight | 960.0 |
| Net weight | 948.0 |
Videos
View AllClose
Related Products
Related Products
Sku: DS6294903
Powermatic Tailstock Riser Block / 4224B
$899.99
The riser block mounts quickly to a low-mounted extension bed to raise bed surface to working height, ideal for some outboard turning projects when the tailstock must be used without compromising...
Sku: DS6294905

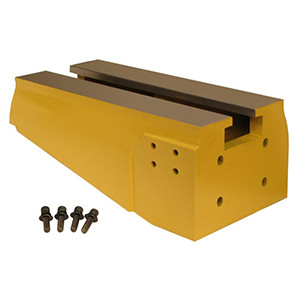

Powermatic 20" Extension Bed / 4224B
$1,209.00
The cast iron bed mounts to the 4224B lathe, extending the working distance between centers.
Adds 20" to working distance between centers
Mounts to predrilled holes in the lathe
An accessory for the...
Sku: PARPOWLATHE
Powermatic Lathes & Acc
The Powermatic 4224B is the newest member of the industry-leading family of lathes. Over 900 pounds, the 4224B is the biggest, heaviest, and most capable lathe we've ever built. It expands the...
Sku: DS6294904

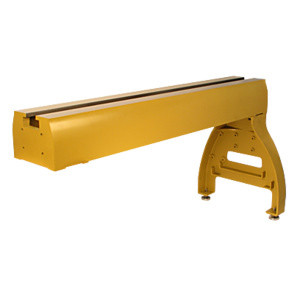

Powermatic 63" Ext Bed W/ Stand 4224B
$2,499.99
The heavy-duty cast iron bed extends working distance between centers.
Extends working distance between centers by 63"
Cast iron leg stand with levelers for sturdy support
An accessory for the...
On Sale
Sku: DS1792020

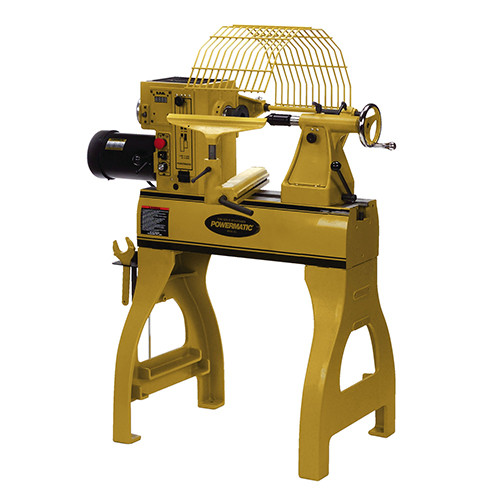

Powermatic Short Bed Lathe PM2020
