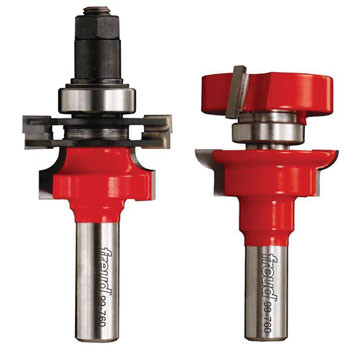

Freud Adjustable Rail & Stile Bit Set, Round Over, 1-1/4" Carbide Height, 1-11/16" Overall Diameter, 1/2" Shank

Application:

Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock.

Freud's unique, patented Premier Adjustable Rail and Stile Router Bit system, you are able to build any style of cabinet door in a range of door thicknesses and sizes! This extremely easy-to-use solution gives you unlimited creative freedom, and solves the long-standing challenges and limitations of frame and panel door construction.

Rail & Stile system is the FIRST & ONLY solution on the market that allows you to:

1. Create extended tenons for extra door joint strength (patented solution)
2. Adjust groove width for different panel thicknesses
3. Choose from a variety of material thicknesses (5/8" to 1-1/4")
4. Add optional cutter to create glass or screen doors
5. Add optional cutters to create double sided profiles in thicker stock material

Features:

• Adjustable shims adjust panel groove down to 7/32"(5.5mm) and up to 3/8" (9.5mm) thick, ideal for plywood panels
• Unique cutter geometry to eliminate tear-out
• Patented Extended Tenon Capability - Top portion of cutter, including bearing and spindle, is removed to produce the front of the long tenon profile
• TiCo™ Hi-Density Carbide to maximize bit life and material finish
• Perma-SHIELD® coating reduces heat & pitch build-up from rust

• Item #: 99-760
• Profile: Round Over
• Overall Dia.(D): 1-11/16"
• Carbide Height(h): 1-1/4"
• Minor Height(m): 15/64"
• Large Radius(R): 7/32"
• Shank Dia.(A): 1/2"
• Overall Length(H): 3-3/4"
