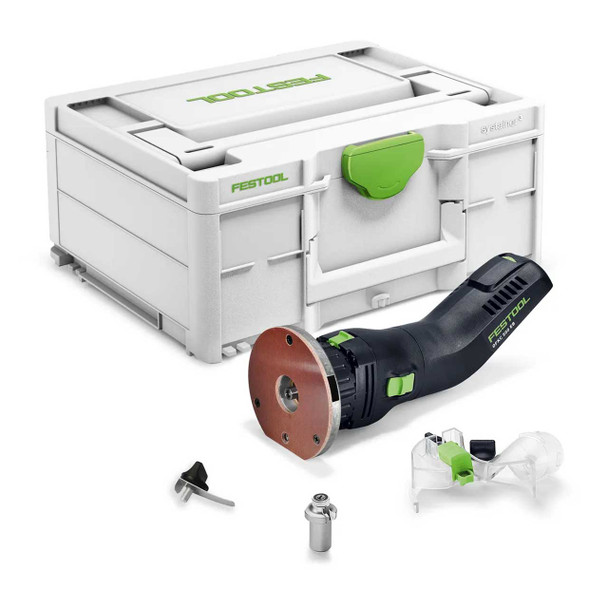

OFKC 500 R3 EB-Basic US Cordless Edge Trimmer

OFKC 500 R3 EB-Basic US Cordless Edge Trimmer

Ergonomic, easy, quick. The cordless edge router for hassle-free jobs.

A well-balanced center of gravity and the sleek design make for tilt-proof routing. The cordless drive gives you greater agility and flexibility. Our cordless edge router delivers precise and clean routing results thanks to a depth adjustment that's accurate to 1/10 mm and a stable connection between the router and the drive. So, edge routing is super easy and straightforward, with no need for reworking.

• Mobile: Comfortably route edges without cables.
• Setting: Easy and accurate to 1/10 mm for adjusting the routing depth.
• No mess-ups: Perfect matching of all OFK 500 cutters (R1-6, chamfers, flush) for base runner drilling.
• Hard fiber base runner: Stops your workpiece getting damaged. Great glide and super scratch-resistant!
• Precision: Great run-out accuracy thanks to a solid link between the cutter and the drive.
• Cutter change: Quick and easy thanks to spindle stop.
• Handy: Slim build, lightweight and a well-balanced center of gravity.
• Space to move: The ball bearing brake made from spring steel gives you more room to move when working without dust extraction.
• All-round support: The see-through dust extraction attachment with built-in ball bearing brake leads, slows down and sucks it all up.
• Convenient: The vacuum kicks off automatically thanks to the Bluetooth® battery pack.
• RPM control: Adjustable to your liking. Cuts down on scorch marks.
• Powerful: With a quiet, brushless EC-TEC motor.
• Long-lasting: Keeping an eye on the motor's temperature.

Performance features

CLEANTEC

Standard connection (27/36/50 mm) for dust extraction, protects the operator and the environment.

FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

EC-TEC motor

The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

MMC Multi Material Control electronics

“Multi Material Control” power electronics with constant adjustable speed and temperature monitor for work on all types of material.

Main applications

• Rounding and chamfering square timber, door frames and boards
• Flush trimming of edge veneer and strip material

Technical data

• Idle engine speed - 10 000 - 25 000 min⁻¹
• Maximum cutter diameter - 27.00 mm
• Cutter stroke (fine-tuning) - 10.00 mm
• Dust extraction connection diameter - 27 mm
• Product weight without accessories - 1.30 kg
• Transport weight incl. accessories - 3.50 kg
• Drive type - Battery
• Battery voltage (rated voltage) - 18 V
• Noise and vibration values
• Routing: Uncertainty (vibration) K - 1.50 m/s²
• Routing: Uncertainty (noise) K - 1.50 dB
• Routing: Total vibration average, Ah - 2.50 m/s²
• Routing: Standards series EN - 60745-2-17
• Routing: A-weighted sound pressure level, LpA - 82.00 dB(A)
• Routing: A-weighted sound power level, LWA - 90.00 dB(A)
• Height: 7.36
• Width: 11.65
• Length: 15.59
