HLC 82 EB-F-Basic US Cordless Planer

HLC 82 EB-F-Basic US Cordless Planer

When traction meets planer quality.

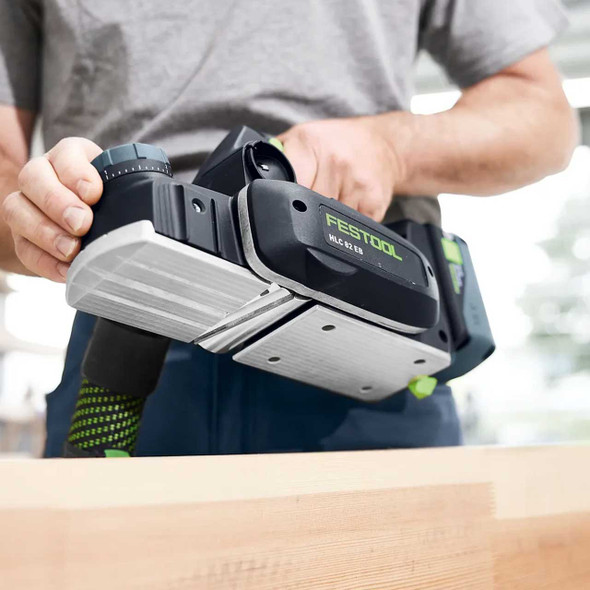

The handy HLC 82 cordless planer is your reliable companion on the construction site and in the workshop when it comes to quick adjustment work. Chamfering of beams, edge transitions of wooden wallboards, rabbets on doors, adjustments to skirting or infill panels: With the cordless planer, you are flexible in your application. You can always rely on maximum power: The HLC 82 works best with the powerful 5.0 Ah Li-HighPower or the 8.0 Ah Li-HighPower battery pack.

• Fast: More speed and flexibility thanks to 2.5 mm maximum chip removal and 25 mm rabbets depth.
• 18V Power: Best in combination with the 5.0 Ah Li-HighPower or the 8.0 Ah Li-HighPower battery pack for maximum runtime and maximum power.
• Flawless: Drawing cut and spiral blade for particularly fine surface quality.
• Versatile: Chamfering with three integrated 90° V grooves in the planer foot.
• For large-scale chip removal: Thanks to the two different extraction channels, the planer is also suitable for continuous applications with greater chip removal.
• Flexible: Extractor connector attachable on both sides for convenient working, the suction hose is not in the way.

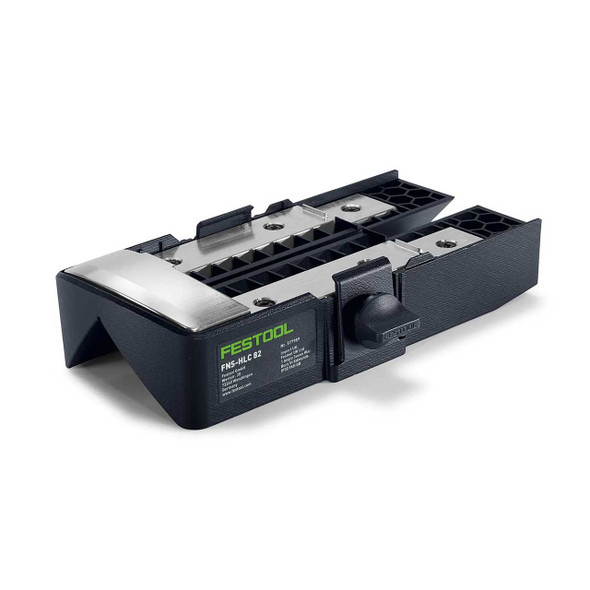

• Convenient: Removable chamfer adaptor for fast and accurate creation of chamfers for beams and square timbers.
• Handy: Easy guidance of the planer on the workpiece thanks to ergonomic design.
• Quiet: The spiral blade reduces the noise level considerably.
• Precise: Chip depth adjustment (0–2.5 mm) on the dial – simple and convenient, easily accessible, even during planing.
• Compatible: With all Festool 18V battery packs (except Ergopack).
• Powerful: The brushless EC-TEC motor ensures constant power, even at maximum chip depth.
• Efficient: The quick-acting brake brings the planer to a standstill in less than two seconds, thereby minimising the risk of injury and damage to the workpiece.

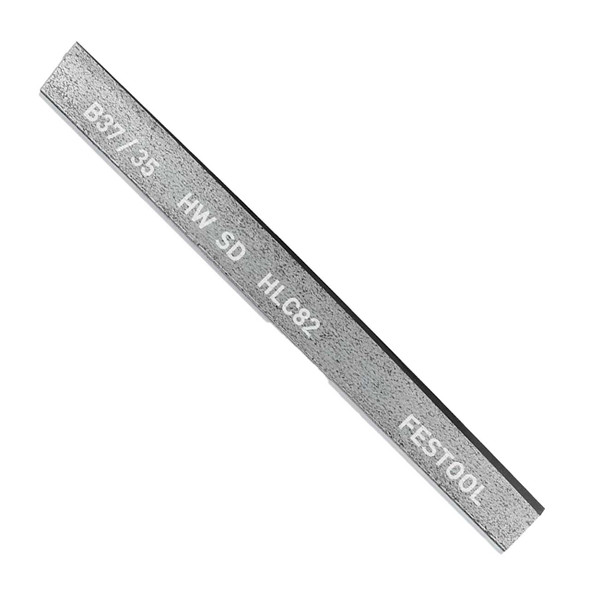

• use only with HW 82 SD HLC 82 (577999) spiral blade
• HL 850 planing heads not compatible

Performance features

Spir-O-Cut
single-edged planer head offers crucial advantages: No need to adjust cutting circle diameter after blade replacement, and oblique shearing for high surface quality

Antistatic function
Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

Quick-acting brake
For safe work when planing, sawing and routing.

EC-TEC motor
The EC-TEC drive concept generates an extraordinary amount of power while consuming extremely low amounts of energy.

Electronic overload protection
Protects the motor with blocking tool.

CLEANTEC
Integrated bayonet fitting as the connecting element between the extractor and the tool.

Electronic monitoring of the temperature
Electronic temperature monitoring protects against engine damage.

AIRSTREAM
Faster reuse of battery packs thanks to AIRSTREAM technology (cooling function for faster availability) and significantly increased charging capacity

Bluetooth®
Bluetooth® communication between battery pack and extractor.

Main applications

• Carrying out quick adjustment work
• Ideal for quickly creating precise and long chamfers on beams and square timbers thanks to the removable chamfer adaptor
• Straightening the edge transitions of wooden wallboards
• Doubling of rafters, adjustment work for older building renovations (roof, dormer, floors, ceiling)
• Adapting stair stringers in an existing context
• Adjustment work on doors, cornices or infill panels
• Wide range of applications due to the 25 mm rabbet depth and the three V grooves integrated in the planer foot

Technical data

• Battery voltage (rated voltage) - 18 V
• Planer shaft speed - 11,500.00 min⁻¹
• Planing width - 82.00 mm
• Planing depth - 0 - 2.5 mm
• Max. rabbet depth without stop - 25.00 mm
• Max. rabbet depth with stop - 23.00 mm
• Dust extraction connection diameter - 36 mm
• Product weight without accessories - 2.70 kg
• Transport weight incl. accessories - 5.10 kg
• Drive type - Battery
• Technology - Bluetooth®

Noise and vibration values

• Planing: Total vibration average, Ah - 3.50 m/s²
• Planing: Standards series EN - 62841-2-14
• Planing: Uncertainty (noise) K - 3.00 dB
• Planing: Uncertainty (vibration) K - 2.00 m/s²
• Planing: A-weighted sound pressure level, LpA - 88.00 dB(A)
• Planing: A-weighted sound power level, LWA - 96.00 dB(A)
• Height - 9.33
• Width - 11.65
• Length - 15.59
