Description

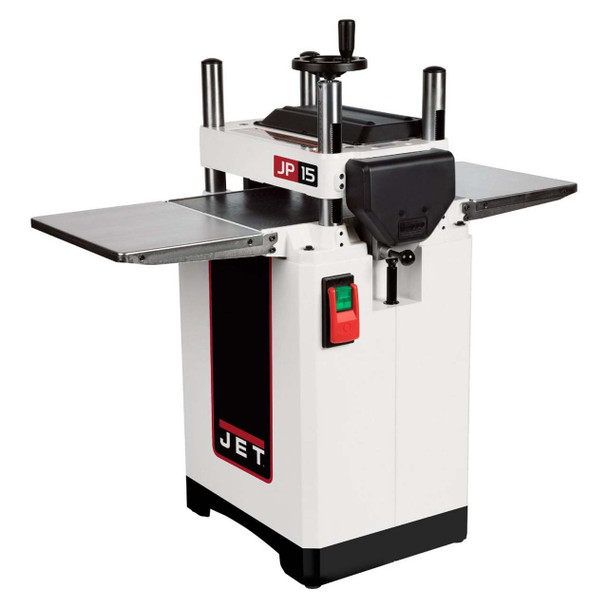

Jet JWP-15B 15" Planer w/SK
If you need precise board thickness, the New JET 15” Straight Knife planer makes the job easy. It has a powerful 3-horsepower motor and a two-speed gearbox, so you can adjust the feed rate for a smoother finish. The Precision Air Strut System (PASS™) keeps steady upward pressure on the cutterhead, which helps prevent board snipe. The sturdy table is made from precision-ground cast iron, and the steel infeed and outfeed table extensions support larger workpieces and fold away when not needed. Since planers can be messy, JET’s angled 4-inch dust port keeps your dust hose clear and makes it easy to connect to your shop’s dust collection system.
Features
You can choose between two infeed speeds, 16 or 20 feet per minute, to get the most efficient cut.
The dust port connects to your dust management system to help keep your shop clean.
A large hand wheel with a positive gear drive lets you easily set the head to your desired board thickness.
The magnetic switch has a green safety light that turns on when the machine is powered.
Maximum depth of cut 1/8", 6" cutting height, and 15" width capacity
The straight cutterhead uses three high-speed steel knives that lock securely in place to prevent movement during use.
Specifications
|
Stock Number |
JT9-722150 |
|
Cutterhead Speed (RPM) |
5200.0000 |
|
Model Number |
JWP-15B |
|
Motor Amps |
11 |
|
Motor Power (HP) |
3 |
|
Motor Voltage (V.) |
230 |
|
Number of Knives |
3 |
|
Number of Speeds |
2 |
|
Prop 65 |
Cancer and Reproductive Harm |
|
Style (Type) |
Floor standing Model |
|
Table Size (L x W) (In.) |
15 x 21.45 in. |
|
Type of Cutterhead |
Straight Knife |
|
Warranty |
5 Year |
|
Gross Weight |
313.5 |
|
Net Weight |
253.0 |
