Description

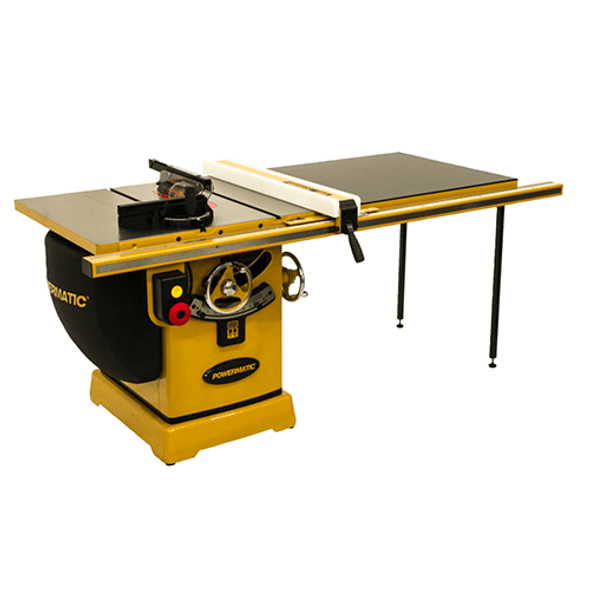

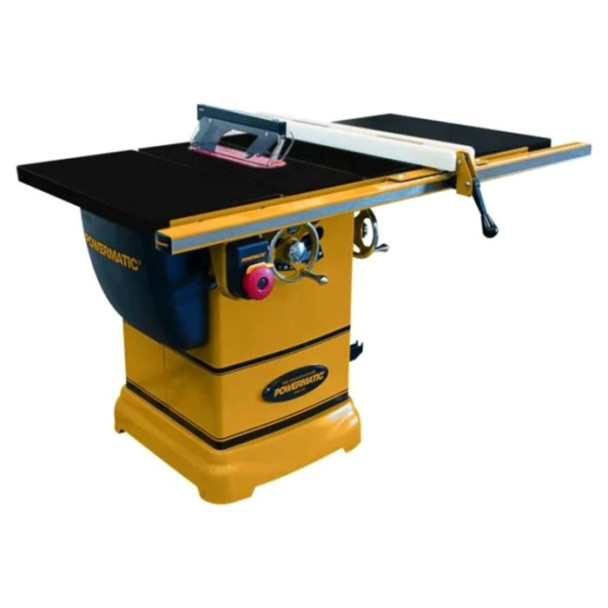

Powermatic PM1000T 30" Table Saw 1-3/4Hp 1Ph 115/230V Armorglide
Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.
Features
- ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust-resistant, requires less maintenance, and gives you more control
- Miter gauge is built with robust materials with many positive stops for the most commonly used angles
- Blade surround and collection hose provide an unobstructed path, maximizing dust collection
- Arbor lock allows for one-handed blade changes with minimal tools
- Conveniently located hands-free power switch
- Ergonomically designed 7” handwheels provide momentum, making blade height and bevel adjustments easy
- Exclusive Accu-Fence provides rigidity and precision
- Precision-ground cast iron work surface features a beveled edge for smoother operation
- Requires only 115V connection for easy installation
- Poly-V belt drive system reduces vibration and maximizes efficiency
Specifications
Stock Number | PM1-1791000KT |
Arbor Diameter (In.) | 5/8 |
Arbor Speed (RPM) | 4200 |
Blade Diameter (In.) | 10 |
Dust Collection Minimum CFM Required (CFM) | 350 |
Dust Port Outside Diameter (In.) | 4 |
Gross Weight (Lbs) | 289 |
Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
Maximum Depth of Cut (In.) | 2-1/8 or 3-1/8 |
Maximum Diameter of Dado (In.) | 8 |
Maximum Rip Left of Blade (In.) | 12 |
Maximum Rip Right of Blade (In.) | 30 |
Maximum Width of Dado (In.) | 13/16 |
Miter Gauge Type | T-Slot with Stops |
Model Number | PM1000T |
Motor Power (HP) | 1-3/4 |
Motor Voltage (V.) | 115/230 |
Net Weight (Lbs.) | 289 |
Overall Dimensions (L x W x H) (In.) | 43 x 61 x 44 |
Prewired Voltage (V.) | 115 |
Recommended Circuit Size (Amps.) | 20 |
Table Height from Floor (In.) | 34-1/4 |
Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
Table Size (L x W) (In.) | 20 x 27 |
Table Type | Cast Iron |
